XCAMLITE4K Series
Product Introduction
Compact size, integrated HDMI and USB output, compatible with USB drive/SD card local storage, supports various image enhancement and measurement functions, suitable for teaching and portable use.
XCAMLITE4K series HDMI camera is a multi-output CMOS camera with HDMI/USB interface, achieving 30 frames per second at 4K resolution.

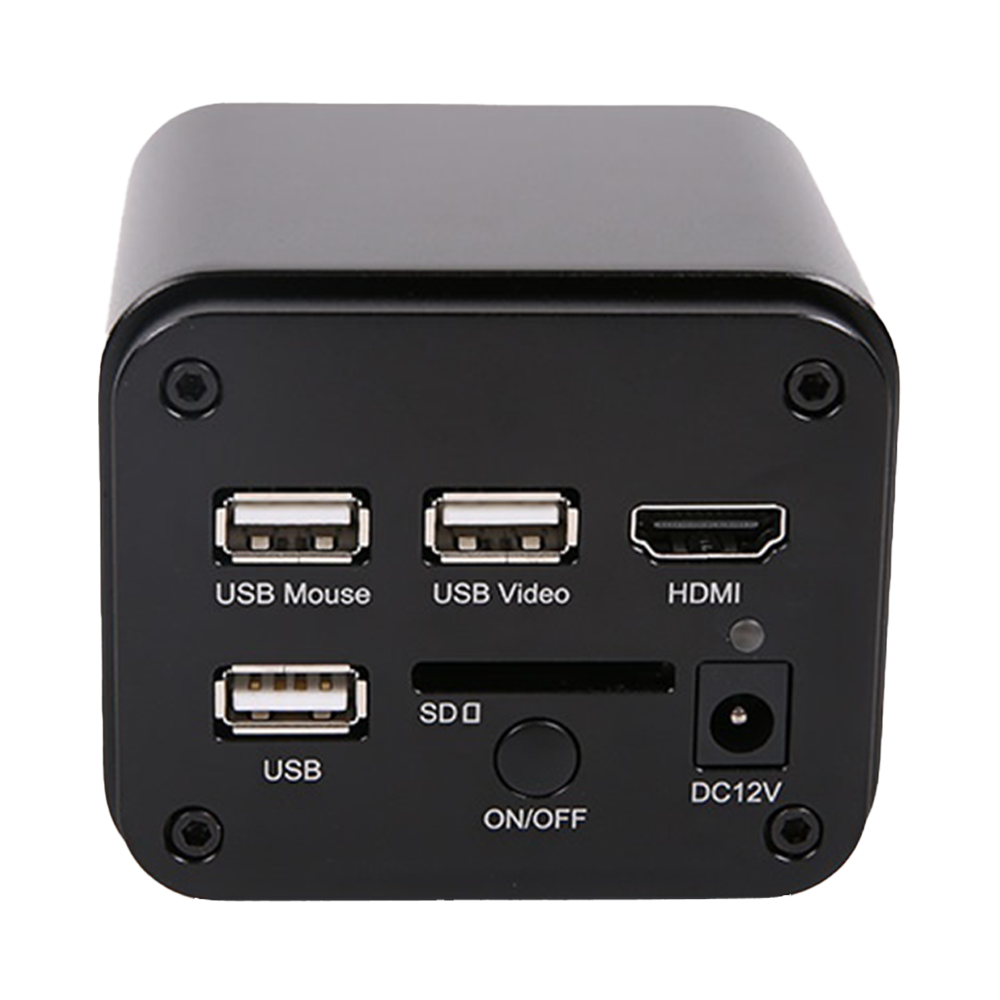

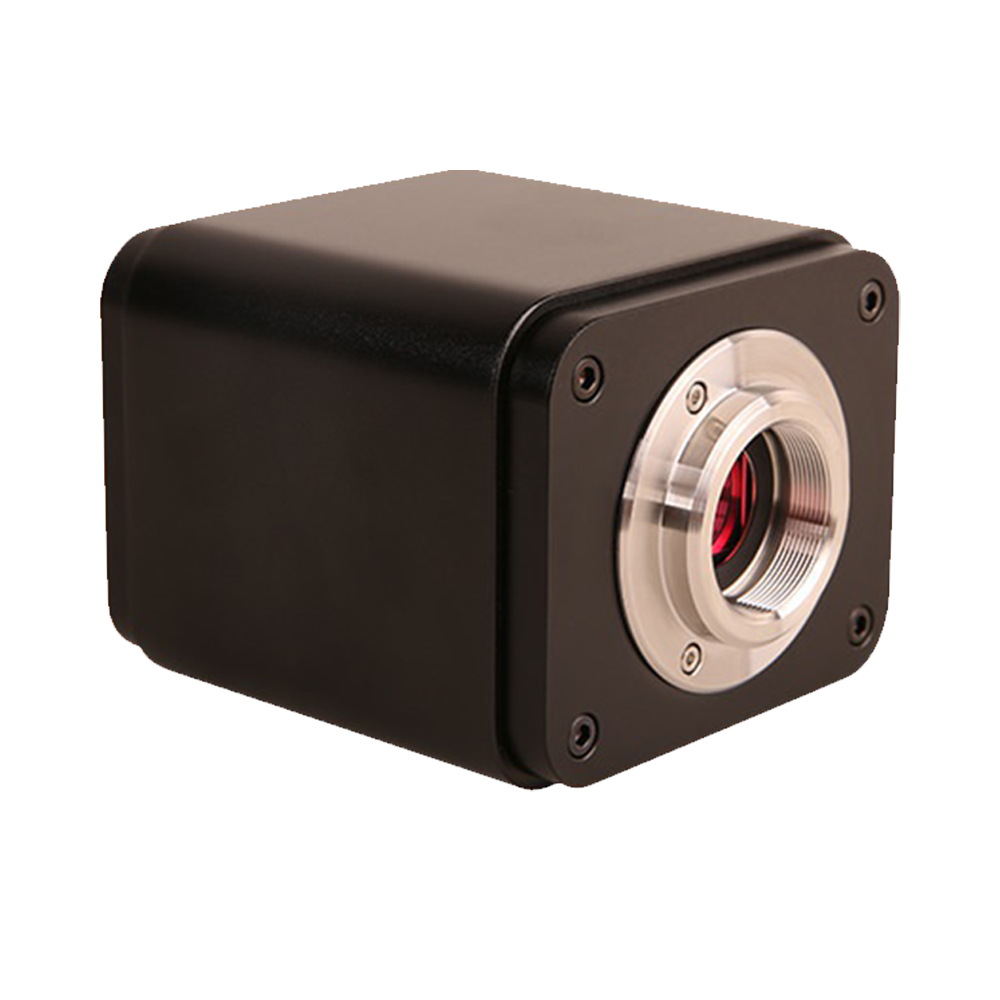

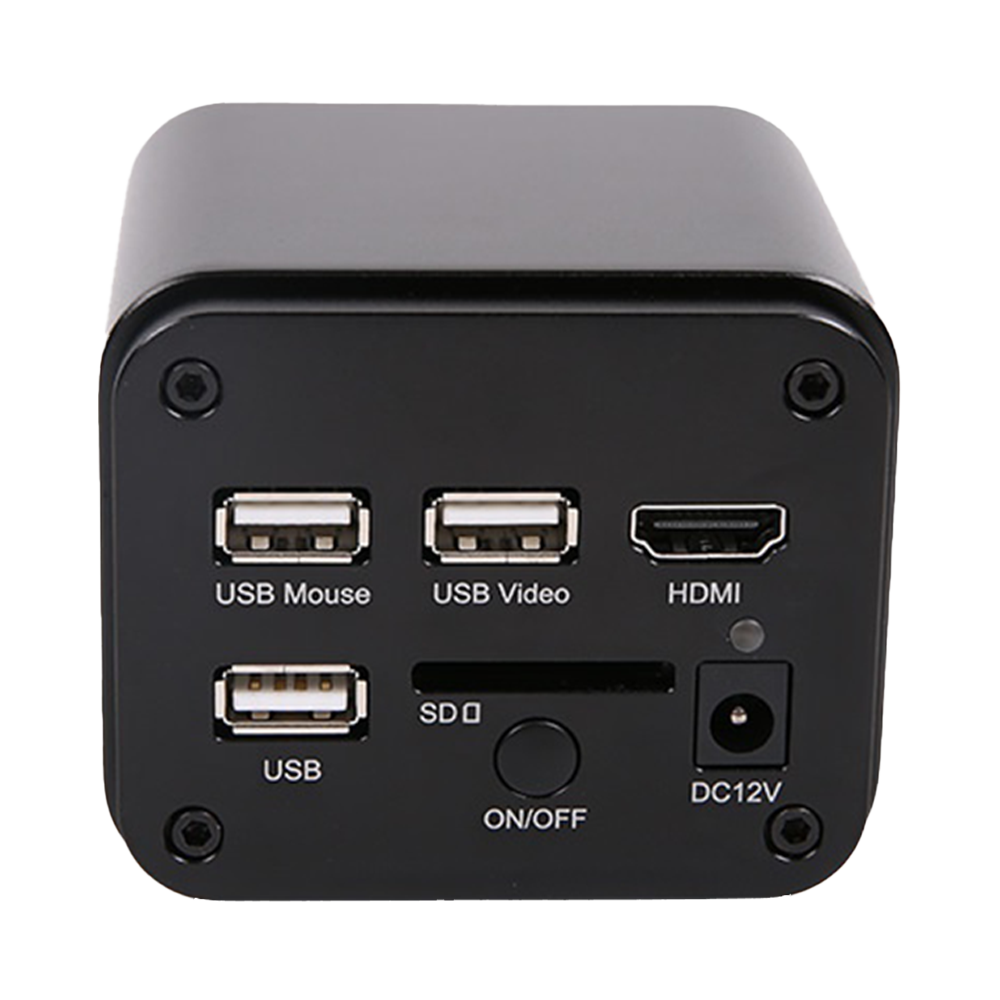

XCAMLITE4K series HDMI cameras adopt standard C-mount interface for maximum compatibility with various microscope systems. When used with HDMI displays or TVs, it can record videos. When connected to computer USB interface, it can transmit video to computer in real-time for image capture and video recording.
Hardware 3D noise reduction, sharpness and local tone mapping algorithms significantly improve the image and video quality of XCAMLITE4K series HDMI cameras.
The included Windows software ToupView/ToupLite provides image processing and measurement functions, as well as advanced composite functions such as image stitching and focus stacking. The software features magnification calibration at multiple magnifications for precise size measurement at different magnifications. For Mac and Linux systems, simplified software is available for capturing video, still images, and simple image processing.
Product Features
- Sony Exmor/Starvis back-illuminated CMOS sensor
- 4K HDMI/USB multi-interface output
- 4K/1080P adaptive switching, 4K frame rate of 30 fps
- SD card saves captured images or videos
- Built-in XCamView software for camera control
- Powerful ISP and other related processing functions (such as 3D noise reduction, etc.)
- PC with ToupView/ToupLite software for more convenient computer operation
- MAC computer uses ToupLite software
XCAMLITE4K Series
HDMI/USB multi-output C-mount compact camera
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| XCAMLITE4K8MPA |
Sony IMX334(C)
1/1.8" (7.68×4.32 mm)
|
2.0 μm × 2.0 μm | 8MP (3840×2160) | HDMI: 30 fps@4K/1080P; USB: 20 fps@3840×2160 | HDMI1.4 USB2.0 | C-mount | SD card / USB drive | 4K video recording Image measurement Crosshair display Graphics overlay Image browsing Video playback 3D noise reduction Sharpening processing ROI white balance Multi-language menu | |
| XCAMLITE4K8MPB |
Sony IMX485(C)
1/1.2" (11.14×6.26 mm)
|
2.9 μm × 2.9 μm | 8MP (3840×2160) | HDMI: 30 fps@4K/1080P; USB: 20 fps@3840×2160 | HDMI1.4 USB2.0 | C-mount | SD card / USB drive | 4K video recording Image measurement Crosshair display Graphics overlay Image browsing Video playback 3D noise reduction Sharpening processing ROI white balance Multi-language menu | |
| XCAMLITE4K8MPC |
Sony IMX678(C)
1/1.8" (7.68×4.32 mm)
|
2.0 μm × 2.0 μm | 8MP (3840×2160) | HDMI: 30 fps@4K/1080P; USB: 20 fps@3840×2160 | HDMI1.4 USB2.0 | C-mount | SD card / USB drive | 4K video recording Image measurement Crosshair display Graphics overlay Image browsing Video playback 3D noise reduction Sharpening processing ROI white balance Multi-language menu | |
| XCAMLITE4K8MPD |
Sony IMX585(C)
1/1.2" (11.14×6.26 mm)
|
2.9 μm × 2.9 μm | 8MP (3840×2160) | HDMI: 30 fps@4K/1080P; USB: 20 fps@3840×2160 | HDMI1.4 USB2.0 | C-mount | SD card / USB drive | 4K video recording Image measurement Crosshair display Graphics overlay Image browsing Video playback 3D noise reduction Sharpening processing ROI white balance Multi-language menu |
XCAMLITE4K Multi-Interface Camera | Packing List #
Standard Packing List
- A Camera box dimensions: 25.5 cm × 17.0 cm × 9.0 cm (1 pcs, 1.48 kg per box)
- B XCAMLITE4K series camera ×1
- C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US POWER-U-12V1A (MSA-C1000IC12.0-12W-US: UL/CE/FCC), EU POWER-E-12V1A (MSA-C10001C12.0-12W-DE: UL/CE/FCC); EMI: FCC Part 15 Subpart B; EMS: EN61000-4-2/3/4/5/6
- D USB mouse
- E HDMI cable
- F High-speed USB 2.0 A male ↔ A male gold-plated data cable (2.0 m)
- G CD (drivers and application, Ø12 cm)
Optional Accessories
- H SD card (16 GB or above, speed class Class 10)
-
I Adjustable eyepiece tube adapters
Dia.23.2 mm to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose one based on camera and microscope).
-
J Fixed eyepiece tube adapters
Dia.23.2 mm to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: Confirm the camera model and scenario before choosing I or J; engineers can help match.
- K 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- L 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- M Micrometer: 106011/TS-M1 (X=0.01 mm/100 Div.); 106012/TS-M2 (X,Y=0.01 mm/100 Div.); 106013/TS-M7 (X=0.01 mm/100 Div., 0.10 mm/100 Div.)
- N USB drive
- O USB wireless network adapter (required for WiFi/AP mode; appearance varies by model)
XCAMLITE4K Multi-Interface Camera | Dimensions #

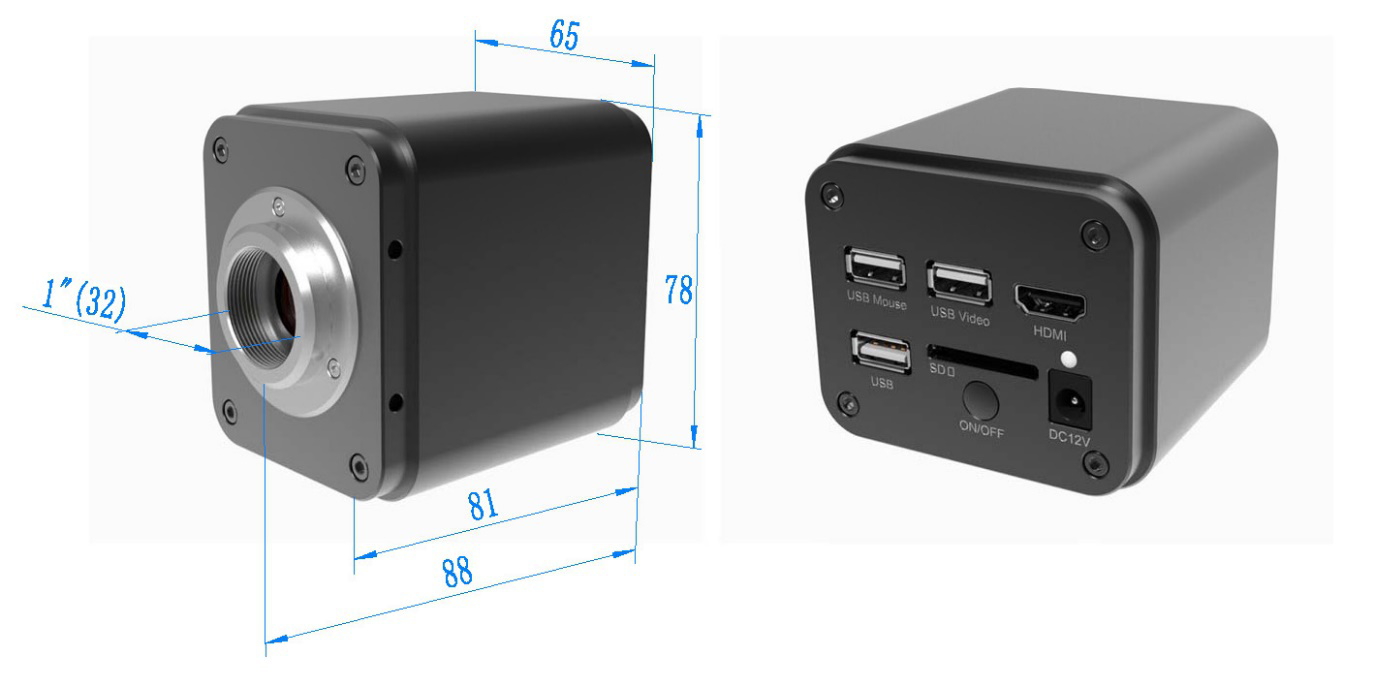

Body size and mounting holes
See manual Figure 3-76
Confirm mount holes and interface orientation with the dimension drawing before installation.
In-Depth Overview
The ToupTek Photonics XCAMLITE4K series is a 4K CMOS microscope camera with HDMI and USB dual-interface output, designed for stereo microscopes, biological microscopes, and other C-mount optical systems requiring 4K high-definition video and image capture.
The series uses a Sony Exmor back-illuminated high-sensitivity CMOS sensor, supports 4K/1080p adaptive HDMI output and high-speed USB transmission, and embeds the XCamView interface for touch or mouse control. It operates without a PC for configuration, capture, and storage, serving research documentation, teaching demonstrations, and industrial inspection.
Technical Highlights
- Dual-interface output for flexible deployment: HDMI 4K real-time display and USB 3.0 high-speed transmission support standalone use or PC capture.
- 4K imaging with hardware optimization: Sony Exmor back-illuminated high-sensitivity CMOS with hardware 3D noise reduction, sharpening, local tone mapping, and gamma adjustment.
- XCamView built-in control for easy operation: Integrated XCamView UI supports both touchscreens and mice, with direct saving to SD cards or USB storage.
- Cross-platform support and software ecosystem: Compatible with ToupView and ToupLite on Windows and macOS for measurement, stitching, denoising, multifocus, and fluorescence image synthesis.
- Industrial design for long-term stability: Robust metal housing and efficient thermal design keep it stable during extended research and industrial use.
Core Advantages
-
1
HDMI + USB dual output Supports standalone preview, presentation, and PC capture for flexible scenarios.
-
2
4K resolution and low-light readiness Sony Exmor CMOS ensures fine detail and accurate color.
-
3
Plug-and-play with built-in control Embedded XCamView supports touch and mouse operation for PC-free capture.
-
4
Complete research toolkit With ToupView it supports measurement, stitching, multifocus, and fluorescence processing.
-
5
Broad application coverage Fits “HDMI USB microscope camera,” “4K C-mount microscope camera,” “research and teaching imaging,” and “Sony Exmor high-sensitivity camera” needs.
