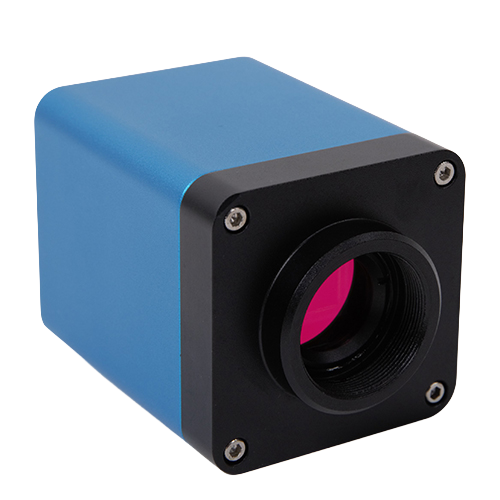

SWIR330KMB-WUH Short-Wave Infrared Camera
Product Introduction
The SWIR330KMB-WUH camera is a short-wave infrared camera utilizing a SONY SWIR indium gallium arsenide (InGaAs) sensor. It features high quantum efficiency and high sensitivity, making it suitable for various industrial applications. Commonly found in sectors such as semiconductor manufacturing, medical imaging and research, video surveillance, security, and packaging, this camera delivers exceptional performance across diverse industrial segments.
Key Features
- Compact size, easy to integrate
- Sony SWIR InGaAs CMOS sensor
- HDMI/ WiFi/ USB multiple video outputs
- USB flash drive for captured image and video storage, support local preview and playback
- Supports USB Voice Control module, enabling real-time control of the camera through voice commands for snap, recording, freeze, and other operations
- Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions
- Excellent ISP with local tone mapping and 3D denoising
- ToupView/ToupLite software for PC
Product Details
| Specifications | |
| Model | SWIR330KMB-WUH |
| Sensor | Sony IMX991-AABJ-C (InGaAs) |
| Shutter Type | Global shutter |
| Color Type | Monochrome |
| Resolution | 0.33 MP (640×512) |
| Sensor Size | 3.20 mm × 2.56 mm |
| Sensor Diagonal | 1/4" (8.94 mm × 7.09 mm) |
| Pixel Size | 5.0 µm × 5.0 µm |
| Spectral Response Range | 400–1700 nm |
| Performance Specifications | |
| Frame Rate | HDMI: 60 fps @ 1920×1080; WiFi/USB: 137 fps @ 640×512 |
| Bit Depth | 12-bit |
| Dynamic Range | 59.6 dB |
| Sensitivity | 121 mV |
| Interface Specifications | |
| GPIO | No industrial IO interface |
| Lens Mount | C-mount |

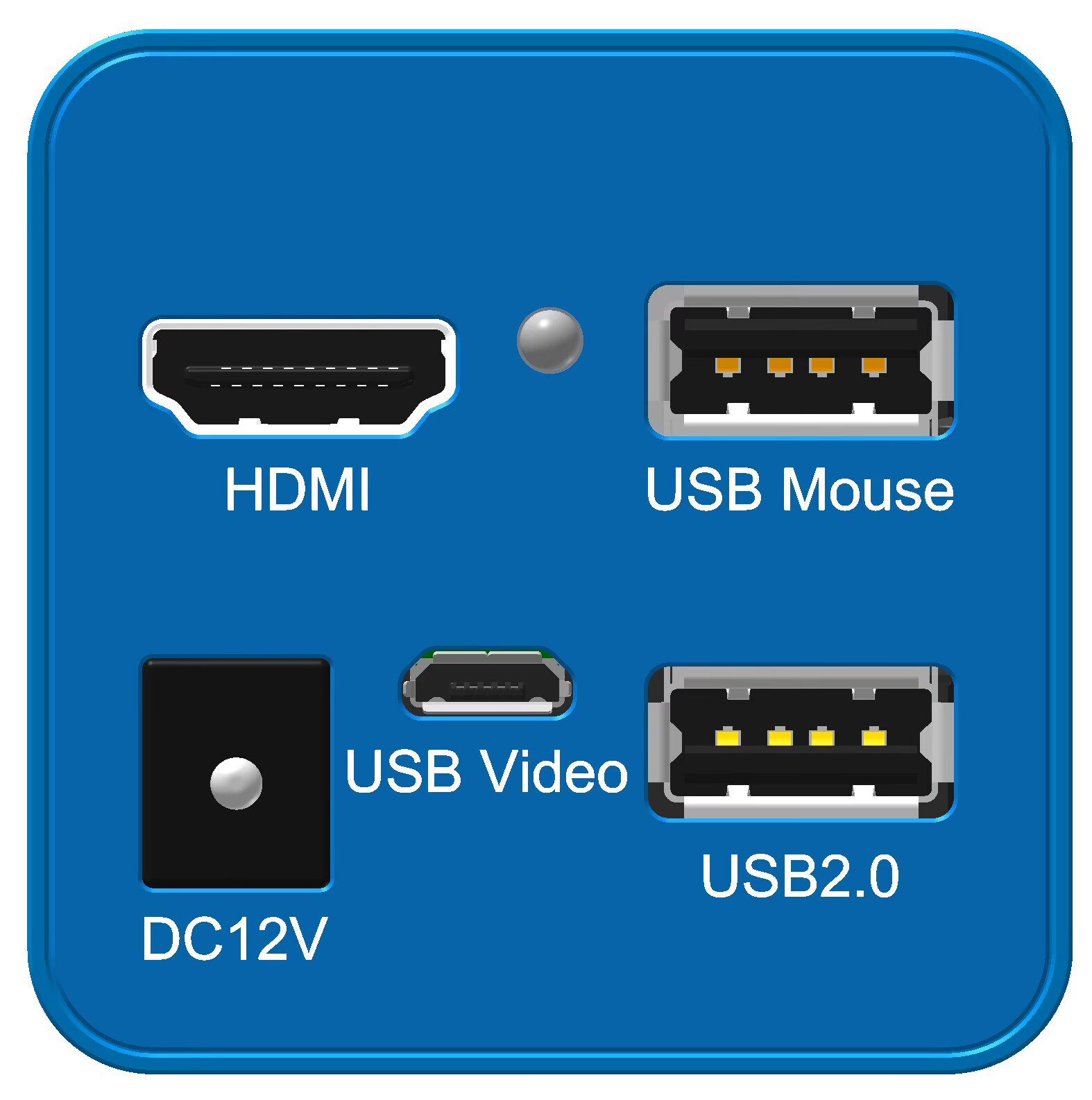

| Data Interface | HDMI 1.4 / WiFi / USB Video (Micro USB) |
| Power Supply | DC 12 V / 1 A power adapter |
| Physical Specifications | |
| Dimensions | 50 mm × 50 mm × 71.5 mm |
| Weight | TBD |
| Environmental Specifications | |
| Operating Temperature | -10 °C ~ +50 °C |
| Operating Humidity | 30%~80% RH |
| Storage Temperature | -20 °C ~ +60 °C |
| Storage Humidity | 10%~60% RH |
| Additional Specifications | |
| Operating System | Windows / macOS / Linux / Android / iOS |
| Certifications | CE, FCC |
Product Overview
SWIR330KMB-WUH combines a high-performance Sony IMX991-AABJ-C (InGaAs) InGaAs CMOS sensor with refined SWIR system engineering to deliver reliable imaging for demanding applications.
- Broad spectral response: covers the visible band through SWIR with a response range of 400–1700 nm.
- High-resolution imaging: delivers 0.33 MP (640×512) pixels with 5.0 µm × 5.0 µm pixel size, supporting frame rates up to HDMI: 60 fps @ 1920×1080 while outputting 12-bit.
- Global shutter design: utilises Global shutter to capture fast-moving scenes without tearing.
- Multiple interface support: offers HDMI 1.4 / WiFi / USB Video (Micro USB) connectivity, works with C-mount lenses, and supports ROI, trigger I/O, and binning controls.
- Compact design: compact dimensions (50 mm × 50 mm × 71.5 mm) with a weight of approximately TBD simplify system integration.
- Cross-platform support: broad Windows / macOS / Linux / Android / iOS compatibility, bundled SDK and ToupView software, and compliance with CE, FCC certifications.
Performance
Frame Rate
Up to HDMI: 60 fps @ 1920×1080
Resolution
0.33 MP (640×512)
Dynamic Range
59.6 dB
Product Summary
SWIR330KMB-WUH is an ideal choice for industrial and research users. Its superb imaging performance, stable thermal management, and flexible integration adapt to complex application environments.
SWIR330KMB-WUH Product Manual
PDF format with detailed specifications and mechanical drawings
SDK Package
Supports Windows, Linux, macOS, and more
3D Model File
STEP format for mechanical design integration
Quantum Efficiency Curve #
IMX991 SenSWIR 400–1700 nm typical quantum efficiency response
Package Contents #
Package list for model SWIR330KMB-WUH (HDMI/WiFi/USB)
- A Outer box (not shown): carton size L: 25.5 cm W: 17.0 cm H: 9.0 cm
- B SWIR330KMB-WUH SWIR camera
- C Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 1 A (US/EU)
- D USB mouse
- E HDMI cable
- F Micro USB cable
- G Optional accessories: voice control module, USB drive, WiFi adapter, eyepiece tube adapter, etc.
Product Dimensions #
Dimensions for model SWIR330KMB-WUH (HDMI/WiFi/USB interface)
IMX991 / IMX990 / IMX992 / IMX993 Sensor Comparison
400–1700 nm SenSWIR family key specs (current page: IMX991)
This page focuses on IMX991 (0.33 MP, 640×512, 5.0 µm): delivers higher full-resolution frame rate and larger pixels within the SWIR family. The table compares IMX990 (1.3 MP), IMX992 (5 MP), and IMX993 (3 MP) for quick selection.
| Sensor | Resolution | Pixel size | Spectral range | Typical full-res fps (by interface) | Bit depth | Dynamic range (typical) | Available interfaces |
|---|---|---|---|---|---|---|---|
| IMX991 Current model | 0.33 MP (640×512) | 5.0 µm | 400–1700 nm |
USB3: 400 fps; GigE: 257.8 fps; CoaXPress: ≈258 fps (656×520); CameraLink: 350 fps; HDMI 1.4: 60 fps @ 1920×1080; WiFi/USB: 137 fps @ 640×512 |
8/12-bit | ≈59.6–59.7 dB | USB3 / GigE / CoaXPress / CameraLink / HDMI 1.4 |
| IMX990 | 1.3 MP (1280×1024) | 5.0 µm | 400–1700 nm |
USB3: 200 fps; GigE: 90 fps; CoaXPress: 134 fps; CameraLink: 183 fps |
8/12-bit | ≈58.7 dB | USB3 / GigE / CoaXPress / CameraLink |
| IMX992 | 5.0 MP (2560×2048) | 3.45 µm | 400–1700 nm |
USB3: 61.9 fps; 10GigE: 145 fps; CoaXPress: 131 fps; CameraLink: 124 fps |
Up to 12-bit (some 8/10/12-bit options) | ≈51.36/51.47 dB (HCG/LCG) | USB3 / 10GigE / CoaXPress / CameraLink / GigE |
| IMX993 | 3.0 MP (2048×1536) | 3.45 µm | 400–1700 nm |
USB3: 93 fps; 10GigE: 220 fps; CoaXPress: 173 fps; CameraLink: 150 fps |
Up to 12-bit (some 8/10/12-bit options) | ≈51.36/51.47 dB (HCG/LCG) | USB3 / 10GigE / CoaXPress / CameraLink / GigE |
Frequently Asked Questions
Learn more about SWIR short-wave infrared camera technology
Deep Understanding of SWIR Cameras
Short-Wave Infrared (SWIR) cameras and their core sensors are important components of advanced imaging systems. SWIR technology covers the 900–1700 nanometer wavelength band and has excellent penetration capabilities in harsh environments, such as penetrating fog, smoke, and dust to achieve clear imaging under extreme conditions.
SWIR cameras primarily rely on short-wave infrared light reflection, similar to the visible light band, complementing the application range that thermal imaging cameras (LWIR) cannot cover, providing more complete imaging solutions. They are compact and flexibly integrated, making them easy to apply in various industrial and commercial systems.
The high resolution and high sensitivity of SWIR cameras can meet precision detection and high-requirement applications, capable of detecting minute changes and anomalies in samples, making them very suitable for quality control and defect detection. Some models support cooling, further ensuring imaging quality in high-temperature or high-noise environments.
To reduce system costs and improve integration efficiency, modern SWIR cameras commonly adopt standard optical interfaces and compact designs to accommodate broader application requirements. With the continuous development of imaging markets and technology, SWIR cameras have become one of the key technologies for high-end imaging and sensing in multiple industries due to their unique advantages.
Application Examples
Demonstration of SWIR camera applications in real-world scenarios
More Application Industry References
- Semiconductor Industry: Solar cell and chip inspection
- Agriculture: Spectral remote sensing applications via multirotor aircraft
- Recycling Industry: Material sorting of plastics, waste, and other materials
- Medical Imaging and Research: Hyperspectral and multispectral imaging
- Food Industry: Quality inspection and grading
- Beverage Industry: Liquid level detection in opaque containers
- Packaging: Seal inspection
- Glass Industry: High-temperature glass penetration defect detection
- Printing Industry: See-through hidden features
- Video Surveillance: Visual enhancement (e.g., smoke penetration)
- Security: Counterfeit detection, such as currency, wigs, or skin
