IUC60000KPA-AFU Industrial Cameras/Analytical Imaging
Product Introduction
The IUC-AFU-EF series addresses high-resolution industrial and research scenarios requiring rapid, stable focusing, featuring APS-C and full frame (35 mm) large-format CMOS sensors with resolutions ranging from 26–60 MP. Equipped with electronic EF mount, the cameras directly control Canon EF/EF-S lens autofocus and electronic aperture, significantly simplifying system integration and enhancing focusing efficiency for multi-magnification and long working distance applications.
For connectivity, the series offers USB3.0 and 10GigE (model-dependent) high-speed data interfaces, supporting multi-bit depth output and internal buffering to meet high-bandwidth and long-distance acquisition requirements. The cameras support free-running, software/hardware triggering, and multi-camera synchronization, with optically isolated I/O for trigger/strobe control and programmable GPIO, facilitating coordination with light sources, motion platforms, and other peripherals.
Complete software ecosystem includes bundled ToupView and cross-platform SDK (Windows / Linux / macOS; C/C++/C#/Python, etc.), compatible with DirectShow / TWAIN, suitable for custom development and rapid deployment of integrated systems and OEM solutions.
Key Features
- Electronic EF mount: Supports EF/EF-S lens autofocus and electronic aperture control, focal length/aperture status readback (lens/model-dependent)
- Resolution coverage 26–60 MP, APS-C and full frame (35 mm) large-format sensors (model-dependent)
- Sensor brands: Sony Exmor / Gpixel and other high-performance CMOS (model-dependent)
- Shutter types: Rolling shutter (RS), select models offer global shutter (GS) (model-dependent)
- Data interfaces: USB3.0 / 10GigE high-speed links, supporting long-distance and high-bandwidth acquisition (model-dependent)
- Multi-bit depth output: 8 / 10 / 12 / 16-bit (model-dependent), enhancing weak signal detail and dynamic range
- Internal buffer (model-dependent), ensuring data stability during high-resolution/high-speed acquisition
- Trigger modes: Free-running, software trigger, external hardware trigger; supports multi-camera synchronization and strobe control
- Industrial-grade I/O: Optically isolated input/output + programmable GPIO, facilitating timing coordination with peripherals
- Image features: ROI, digital Binning (2×2/3×3/4×4, model-dependent), mirror/flip, Gamma/LUT, noise reduction, etc.
- AF extensions: Supports AF lock and manual focus override (MF), meeting precision focusing and repeatable positioning requirements (model-dependent)
- Form factors: Standard housing and board-level (OEM) options for embedded/system integration
- Bundled software and SDK: ToupView; Windows / Linux / macOS SDK (C/C++/C#/Python), compatible with DirectShow / TWAIN
- Supports field firmware upgrades; CE / FCC / RoHS certified (model-dependent)
Product Details
| Key Parameters | |
| Model | IUC60000KPA-AFU |
| Sensor | Sony IMX455AQK |
| Effective Pixels / Resolution | 60.0MP (9568×6380) |
| Frame Rate (Full Resolution) | 6.1 fps@9568×6380 (16-bit); 24.6 fps@4784×3190; 55.8 fps@3184×2124; 191.0 fps@1040×706 |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Imaging Performance | |
| Pixel Size | 3.76 µm × 3.76 µm |
| Sensor Size | 35.96 mm × 23.99 mm |
| Diagonal | 2.7" (43.23 mm) |
| Dynamic Range | 83.34 dB (HCG) 84.18 dB (LCG) |
| Bit Depth | 8/16-bit |
| Sensitivity | 484.5 mV |
| Interface & Mechanical | |
| Data Interface | USB3.0 |
| GPIO | 1× optically isolated input, 1× optically isolated output, 2× non-isolated I/O |
| Lens Mount | Canon EF mount (autofocus) |
| Dimensions | 88 mm × 88 mm × 36.3 mm |
| Weight | 540 g |
| Power Supply | DC 12 V |
| Environment & Certification | |
| Operating Temperature / Humidity | -10 °C to +50 °C / 20% to 80% non-condensing |
| Storage Temperature / Humidity | -30 °C to +70 °C / TBD |
| Operating System | Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
| Certification | CE/FCC |
Product Overview
IUC60000KPA-AFU is a digital camera specifically designed for microscopy imaging applications, featuring the Sony IMX455AQK high-performance image sensor with the following characteristics:
- Exceptional Imaging Quality: 60.0MP (9568×6380) resolution, 3.76 µm × 3.76 µm pixel size, sensor size of 35.96 mm × 23.99 mm , ensuring clear detail presentation
- Imaging Characteristics: Features Rolling Shutter design, supports color imaging, suitable for brightfield, darkfield, phase contrast, fluorescence, and other microscopy observation methods
- High-Speed Data Transmission: Utilizes USB3.0 interface, maximum frame rate up to 6.1 fps@9568×6380 (16-bit); 24.6 fps@4784×3190; 55.8 fps@3184×2124; 191.0 fps@1040×706 , supports real-time preview and rapid capture
- Color Reproduction: 8/16-bit color depth, dynamic range reaches 83.34 dB (HCG) 84.18 dB (LCG) , faithfully reproduces sample colors
- Sensitivity Performance: Excellent low-light performance, sensitivity of 484.5 mV , suitable for low-light sample observation
- Optical Compatibility: Standard Canon EF mount (autofocus) interface, compatible with various microscope brands, equipped with optional 0.5×/0.63×/1× adapters
- Compact Design: Overall dimensions only 88 mm × 88 mm × 36.3 mm , weight 540 g , powered by DC 12 V , no additional power source required
- Software Support: Bundled with professional microscopy imaging software ToupView, supports Windows/Linux/macOS/Android multi-platform SDK (native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) systems, provides measurement, annotation, stitching, extended depth of field and other functions, supports C/C++, C#, Python, ImageJ, μManager and other development environments
Core Performance Specifications
Resolution
60.0MP (9568×6380)
Frame Rate
Up to 6.1 fps@9568×6380 (16-bit); 24.6 fps@4784×3190; 55.8 fps@3184×2124; 191.0 fps@1040×706
Pixel Size
3.76 µm × 3.76 µm
Data Interface
USB3.0
Microscopy Imaging Features
Professional Microscopy Applications
Optimized for biomedical, materials science, industrial inspection and other microscopy observation needs, supports brightfield, darkfield, phase contrast, fluorescence and other observation methods
Excellent Color Reproduction
Precise color reproduction algorithms and white balance control ensure true and accurate sample colors, meeting professional requirements such as pathological diagnosis
Measurement and Analysis Functions
Bundled software provides length, area, angle and other measurement tools, supports annotation and statistical analysis, meeting quantitative analysis requirements
Image Processing Capabilities
Supports real-time image enhancement, extended depth of field, image stitching and other advanced functions, improving observation effects and imaging quality
Why Choose This Model
The IUC60000KPA-AFU microscopy camera, with its exceptional imaging quality, convenient operation experience and professional software support, is an ideal choice for microscope digitization upgrades. Whether for biomedical research, materials analysis or industrial inspection, it provides clear, accurate and reliable microscopic image recording and analysis solutions.
IUC60000KPA-AFU Product Manual
PDF format, includes detailed technical specifications and dimensional structure
SDK Development Kit
Supports Windows, Linux, macOS and other platforms
3D Model Files
STEP format, for mechanical design integration
Package Contents · IUC60000KPA-AFU #
Standard contents for IUC-AFU-EF (USB3.0 / 10GigE)
Recommended kit (USB3)
- Camera body - USB3.0 interface
- I/O cable - 7-pin cable or extension cable
- USB3.0 cable - Micro USB3.0 cable
- Power - 12 V/3 A aviation power adapter
- Lens (optional) - EF-mount lens

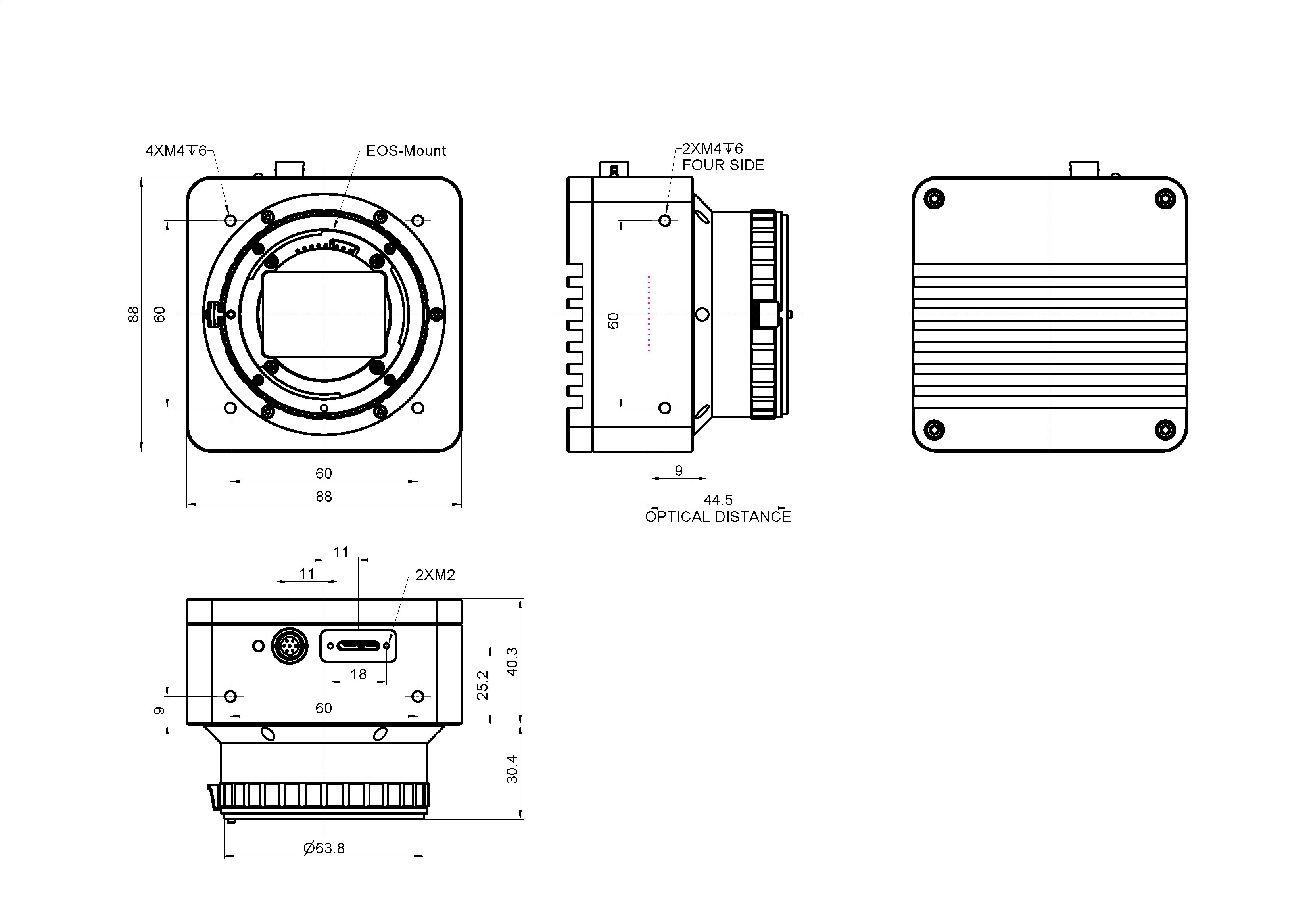

Product Dimensions · IUC60000KPA-AFU #
Outline dimensions for the IUC-AFU-EF series
The IUC-AFU-EF Series is ToupTek’s full-frame autofocus industrial camera line, spanning 26–60 MP for scientific inspection, high-resolution industrial imaging, and dynamic scene capture. It uses high-performance BSI CMOS sensors such as Sony IMX571 and IMX455, supports high-speed USB3.0, and integrates autofocus with Canon EF-mount lenses to deliver a complete, flexible optical solution for precision imaging.
Key Features
Full-frame large format
APS-C / full frame, up to 60 MP
EF-mount autofocus
Compatible with Canon EF lens system
BSI CMOS
High quantum efficiency, low noise
Multi-level binning
1×1 / 2×2 / 3×3 / 9×9 flexible modes
Performance Highlights
Resolution range
26-60 MP
Ultra-high pixelPeak frame rate
191 fps
ROI modeExposure range
150μs-15s
Flexible controlSensor size
1.8"-2.7"
Large formatIn-Depth Overview
Full-frame high-pixel imaging
Built on APS-C (1.8\") and full-frame (2.7\") sensors, delivering up to 60 MP for precision inspection and wide-area imaging. The 3.76 µm pixel size balances fine detail with low-light sensitivity. Low dark current (down to 0.04 mV@1/30s) suits long exposures and high-contrast scenes. Supports 8-bit, 12-bit, and 16-bit output for research and industrial analysis.
BSI CMOS advantages
IMX571 and IMX455 offer high quantum efficiency and low noise for quality imaging in low light. The BSI design boosts photon conversion efficiency, capturing more light under the same illumination to improve SNR. Achieves up to 6.1 fps @ 9568×6380 (16-bit full resolution) and up to 191 fps @ 1040×706 in ROI mode.
Smart autofocus system
EF-mount autofocus suits tasks requiring frequent focal changes. Compatible with Canon EF lenses for fast and accurate focusing. Exposure from 150 µs to 15 s, supporting free-run, software trigger, and hardware trigger modes for varied applications.
Multi-level binning and ROI
Supports 1×1, 2×2, 3×3, 9×9 binning and ROI to adjust resolution/frame rate for a balance of sensitivity and speed. High-speed USB3.0 with single-cable power/data simplifies wiring. Power consumption under 5 W with opto-isolated I/O for easy integration.
Industrial reliability and platform support
Full-metal build, low power, operating range -10 to +50 °C for long-term stability. Compatible with Windows, Linux, macOS, Android; SDKs support C/C++, C#/VB.NET, Python, Java, and more. CNC metal housing ensures durability in demanding industrial environments.
Applications
IUC-AFU-EF use cases across industrial imaging
IUC-AFU-EF Key Advantages
Autofocus
EF lens compatible
Full-frame
2.7" sensor
Ultra-high pixels
60 MP output
BSI CMOS
High sensitivity
High-speed ROI
191fps
Multi-level binning
4 modes
USB3.0
Single-cable power
Cross-platform SDK
Multi-language support
