WEUCAM4MPA USB+LAN+Wi-Fi C-mount CMOS Camera

Product Introduction

WEUCAM4MPA is a high-performance USB+LAN+Wi-Fi C-mount CMOS Camera featuring Sony IMX347(C) sensor, with resolution up to 4MP (2688×1512), supporting USB2.0, LAN, Wi-Fi 802.11ac multiple output methods.

Model: WEUCAM4MPA
Sensor: Sony IMX347(C)
Resolution: 4MP (2688×1512)
Sensor Size: 1/1.8" (7.8×4.38 mm)
Pixel Size: 2.9 µm × 2.9 µm
Frame Rate: USB: 30 fps@2688×1512; LAN/Wi-Fi: 30 fps@2688×1512
Output Interface: USB2.0, LAN, Wi-Fi 802.11ac
Lens Mount: C-mount

Product Features

  • Triple-interface output, Flexible connectivity options, High resolution, AP/STA modes, Network bandwidth adjustment
Request a Quote Product Manual

Product Details

WEUCAM4MPA Specifications

General Parameters
Product ModelWEUCAM4MPA
Product SeriesUSB+LAN+Wi-Fi C-mount CMOS Camera
SensorSony IMX347(C)
Imaging Performance
Resolution4MP (2688×1512)
Pixel Size2.9 µm × 2.9 µm
Frame RateUSB: 30 fps@2688×1512; LAN/Wi-Fi: 30 fps@2688×1512
Shutter TypeRolling shutter
Interfaces & Control
Output InterfacesUSB2.0, LAN, Wi-Fi 802.11ac
Network ModesAP / STA
Software SupportToupView, ToupLite
Physical & Environmental
Dimensions50 × 50 × 112 mm
Weight0.19 kg
Operating Temperature-10 °C ~ +50 °C
Power SupplyMicro USB DC 5 V/1 A
Operating SystemWindows, Linux, macOS
CertificationCE, FCC, RoHS

WEUCAM merges USB, LAN, and Wi-Fi into one platform, supporting local acquisition, enterprise LAN collaboration, and wireless roaming at the same time. With ToupView/ToupLite software, users can measure, record, annotate, and integrate workflows via SDKs.

Core Feature Highlights

  • Triple-interface output covers local preview, network collaboration, and system integration.
  • Embedded 11ac wireless module offers high bandwidth with low latency.
  • Multi-end access plus online annotation and recording fit teaching, research, and enterprise collaboration.
  • Compact housing with C-mount simplifies retrofits and embedded deployments.

Connectivity Options

USB 2.0 Plug-and-Play

Connect to a PC for real-time capture, measurement, and recording in ToupView.

LAN Wired Network

The RJ45 port delivers stable high-speed transfer for enterprise or teaching networks.

Wi-Fi 802.11ac

Switch between AP and STA modes to create hotspots or join existing wireless networks.

Multi-Device Access

PCs, tablets, and phones can view simultaneously for collaborative demonstrations.

Deployment & Control

  • USB + LAN + Wi-Fi operate concurrently to support varied workstations.
  • AP/STA switching and bandwidth management adapt quickly to on-site networks.
  • SDK integration enables enterprise systems or custom software platforms.

Image Processing

  • ROI white balance, color calibration, and 3D noise reduction preserve streamed image quality.
  • Multi-end annotation, measurement, and recording with exportable datasets.
  • Cross-platform SDKs accelerate secondary development and system integration.
Triple-interface output, AP/STA dual modes, and cross-platform software empower WEUCAM to deploy flexibly across teaching, research, and enterprise collaboration while lowering barriers to networked imaging.

Typical Applications

Multi-mode microscopy imaging

Multi-mode microscopy imaging

Flexible network connectivity

Flexible network connectivity

Teaching applications

Teaching applications

Research-grade applications

Research-grade applications

Upgrade Suggestions

WEUCAM Series Product Manual

PDF with triple-interface topology, network configuration, and software instructions.

Download Manual
Software & Tools

Access downloads for ToupView, ToupLite, mobile apps, and SDKs.

Go to Downloads
Solution Consultation

Submit project requirements for deployment and integration guidance.

Contact Advisor

WEUCAM WiFi+Ethernet Camera | Packing List #

Standard Packing List

  • A Camera box: 15.0 cm × 15.0 cm × 10.0 cm (1 pcs, about 0.5 kg per box)
  • B WEUCAM camera ×1
  • C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 5 V 1 A; US POWER-U-5V1A (SK12G-0500100U: UL/CE/FCC), EU POWER-E-5V1A (SK12G-0500100V: UL/CE/FCC)
  • D Micro USB data cable 1.5 m
  • E CD (driver and application, Ø12 cm)

Optional Accessories

  • F Gigabit Ethernet cable
  • G Adjustable eyepiece tube adapters
    Dia.23.2 mm eyepiece to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on the camera and microscope).
  • H Fixed eyepiece tube adapters
    Dia.23.2 mm eyepiece to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: confirm camera interface and scenario before choosing G or H; engineers can assist.
  • I 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
  • J 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
  • K Micrometer: 106011/TS-M1 (X=0.01 mm/100Div.), 106012/TS-M2 (X,Y=0.01 mm/100Div.), 106013/TS-M7 (X=0.01 mm/100Div., 0.10 mm/100Div.)

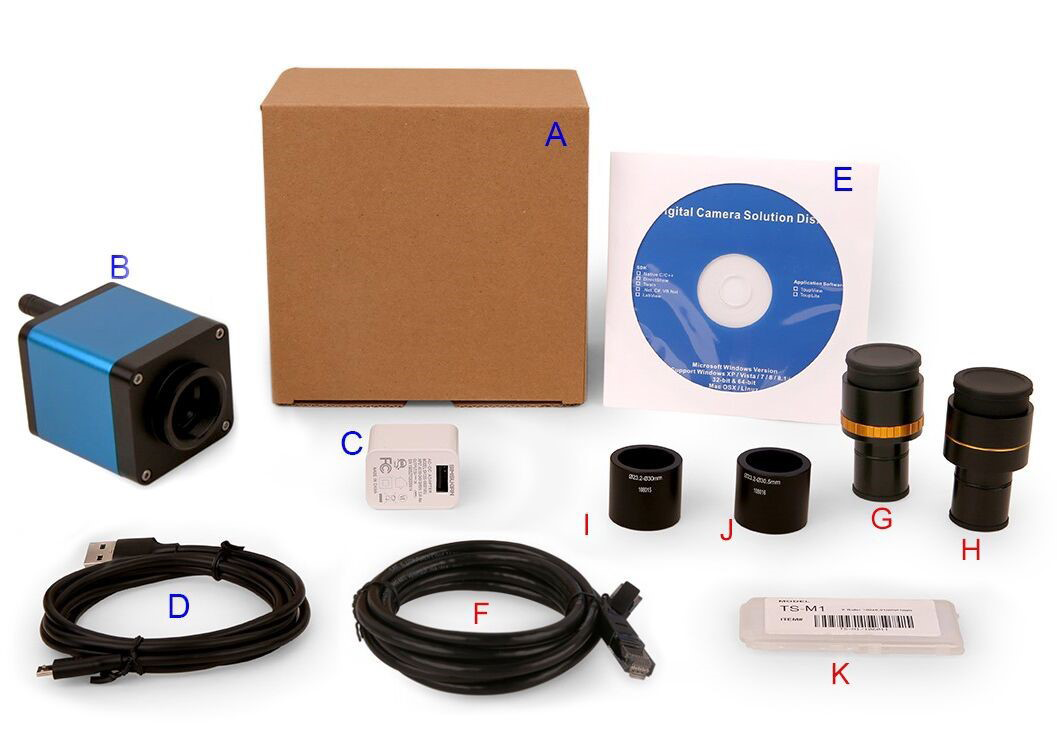

WEUCAM packaging diagram
WEUCAM packaging diagram (Fig. 4-16)

WEUCAM WiFi+Ethernet Camera | Product Dimensions #

Dimensions and interface layout

WEUCAM dimensions
WEUCAM dimensions

See manual Fig. 4-15

  • Box: 15.0 cm × 15.0 cm × 10.0 cm
  • Shipping weight: about 0.5 kg (with packaging)
  • Power: DC 5 V / 1 A (POWER-U/E-5V1A)
  • Interfaces: USB3.0 / HDMI 2.0 / LAN / WiFi (AP/STA)

Please confirm mounting holes and interface orientation per the dimension drawing before installation.

Deep Dive

The Touptek WEUCAM series is a C-mount CMOS microscope camera with USB, LAN, and Wi-Fi outputs that connects directly to stereo or biological microscopes for high-resolution imaging and video capture.

It uses Sony Exmor backside-illuminated large-format CMOS sensors for low noise and high sensitivity, and works with ToupView/ToupLite plus iOS/Android apps to build a microscopy interactive teaching network that lets instructors present and students follow in sync.

Technical Highlights

  • Flexible multi-interface output: USB, LAN, and Wi-Fi 11AC high-bandwidth transfer supporting up to 30 fps/4 MP live video for labs, classrooms, and multi-device collaboration
  • High-performance imaging: Robust ISP delivers low-noise video, color optimization, and real-time processing for research and teaching
  • Cross-platform compatibility: Works with ToupView/ToupLite on Windows/macOS and iOS/Android apps for mobile access
  • Teaching network ready: Connect via LAN/Wi-Fi for multi-device access, classroom casting, demos, and remote teaching
  • Durable design: Quality housing and stable hardware suit long-term lab or industrial use

Core Benefits

  • 1
    Multi-Interface Collaboration USB, LAN, and Wi-Fi outputs work alone or in teaching networks
  • 2
    High Image Quality, Low Noise Sony Exmor BSI sensors plus ISP deliver high sensitivity and dynamic range
  • 3
    Cross-Platform Support Compatible with PCs and mobile devices for flexible teaching and research
  • 4
    Teaching & Research Ready Multi-end sharing fits classroom interaction, research imaging, and QA
  • 5
    Wide Application Coverage Covers “USB/LAN/Wi-Fi microscope camera,” “C-mount CMOS camera,” “interactive teaching imaging,” “Sony Exmor CMOS camera”
