TYPECAMTOP Series
Product Introduction
Achieves power and video transmission through a single Type-C cable, providing simultaneous Monitor and USB Video dual output; supports AP/STA wireless connection with external USB 5 GHz Wi-Fi adapter. Built-in XCamView supports measurement and image processing, USB drive local recording/capture and playback, suitable for microscopy imaging and portable inspection.
Product Features
- Sony Starvis/Starvis 2 back-illuminated CMOS sensor
- Type-C interface powered, no external power supply required

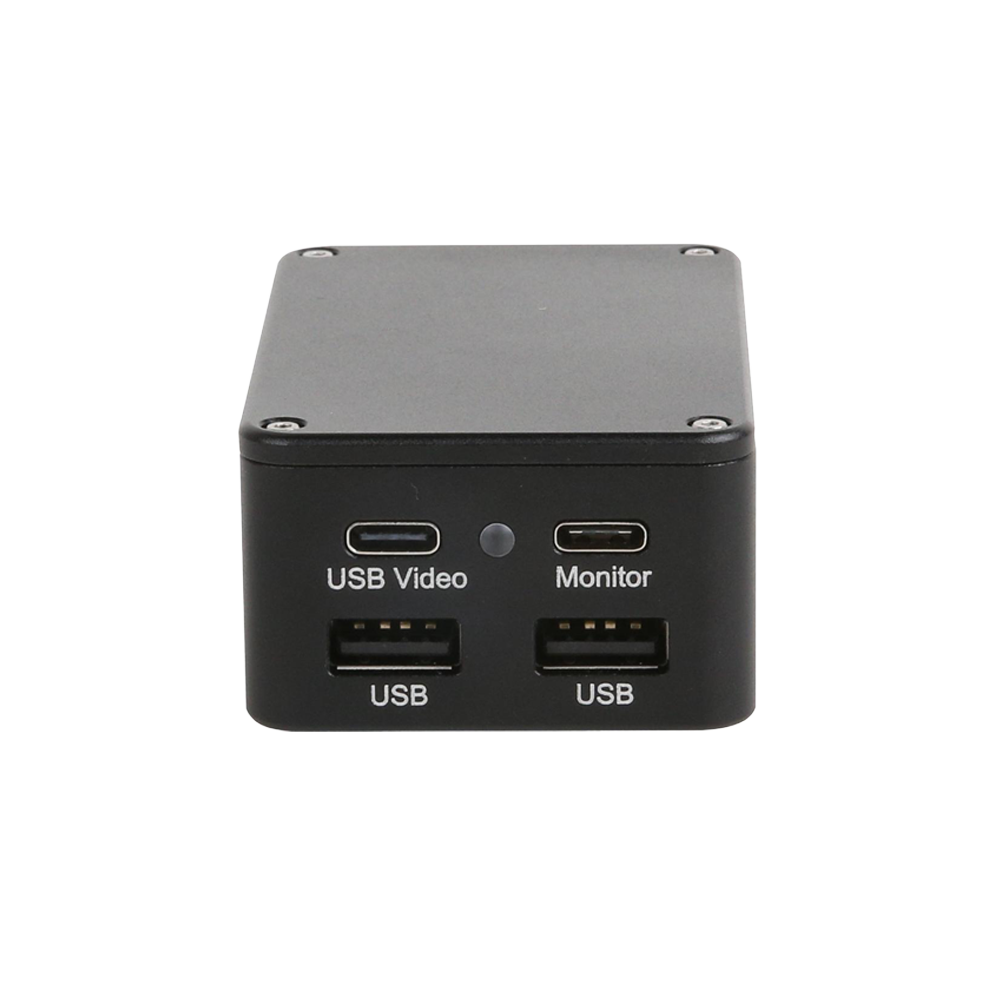

- Monitor/USB Video dual interface simultaneous output (Wi-Fi requires external USB adapter)
- Monitor supports 4K/1080P adaptive resolution switching
- USB drive saves MP4(H.264) video and JPEG/TIFF images with playback support
- Supports USB voice control module for voice commands
- Embedded XCamView: provides auto edge detection and auto measurement functions
- Hardware ISP: sharpening, 3D noise reduction, ROI white balance, etc.
- Supports biological/stereo microscope scene mode one-click switching
- Multi-language interface (Chinese/English/Japanese/Korean and 10 other languages)
- Provides ToupView/ToupLite PC software
- Provides iOS/Android mobile applications
TYPECAMTOP Series
Type-C All-in-One 4K Camera (Multi-Interface Simultaneous Output)
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| TYPECAMTOP4K8MPA |
Sony IMX334(C)
1/1.8" (7.68×4.32 mm)
|
2.0 µm × 2.0 µm | 8MP (3840×2160) | Monitor: 30 fps@3840×2160; USB Video: 30 fps@3840×2160; WiFi: 30 fps@3840×2160 | Type-C Monitor USB Video WiFi | C-mount | USB drive | 505 mV light sensitivity (1/30s) 0.1 mV dark current (1/30s) Type-C powered, no external power required Dual video simultaneous output Voice control for photo and video recording Auto edge detection and measurement | |
| TYPECAMTOP4K8MPB |
Sony IMX585(C)
1/1.2" (11.14×6.26 mm)
|
2.9 µm × 2.9 µm | 8MP (3840×2160) | Monitor: 30 fps@3840×2160; USB Video: 30 fps@3840×2160; WiFi: 30 fps@3840×2160 | Type-C Monitor USB Video WiFi | C-mount | USB drive | 5970 mV high light sensitivity (1/30s) 0.39 mV dark current (1/30s) Large pixel size 2.9 µm Type-C single-cable power and transmission Supports WiFi AP/STA modes Built-in measurement calibration function | |
| TYPECAMTOP4K8MPC |
Sony IMX678(C)
1/1.8" (7.68×4.32 mm)
|
2.0 µm × 2.0 µm | 8MP (3840×2160) | Monitor: 30 fps@3840×2160; USB Video: 30 fps@3840×2160; WiFi: 30 fps@3840×2160 | Type-C Monitor USB Video WiFi | C-mount | USB drive | 1364 mV ultra-high light sensitivity (1/30s) 0.15 mV low dark current (1/30s) Starvis 2 technology Type-C plug-and-play Supports multi-camera networking Fusion/layered measurement data storage | |
| TYPECAMTOP1080P2MPA |
Sony IMX385(C)
1/2" (7.2×4.05 mm)
|
3.75 µm × 3.75 µm | 2MP (1920×1080) | Monitor: 60 fps@1920×1080; USB Video: 60 fps@1920×1080; WiFi: 60 fps@1920×1080 | Type-C Monitor USB Video WiFi | C-mount | USB drive | 60 fps high frame rate output 1175 mV light sensitivity (1/30s) Large pixel 3.75 µm Type-C portable connection Real-time video comparison function Supports 50 Hz/60 Hz anti-flicker |
TYPECAMTOP Multi-Interface Camera | Packing List #
Standard Items in the Box
- A Camera box: 25.5 cm × 17.0 cm × 9.0 cm (1 pc, approx. 1.57 kg per box)
- B TYPECAMTOP series camera ×1
- C Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 1 A (GS12U12-P1I / GS12E12-P1I)
- D USB mouse ×1
- E HDMI 2.0 cable ×1
- F High-speed USB 2.0 A↔A gold-plated data cable (2.0 m)
- G Driver and application disc (Ø12 cm)
Optional Accessories
- H SD card (≥16 GB, Class 10)
- I Adjustable eyepiece adapters 108001/AMA037, 108002/AMA050, 108003/AMA075
- J Fixed eyepiece adapters 108005/FMA037, 108006/FMA050, 108007/FMA075
- K 30 mm eyepiece conversion ring 108015
- L 30.5 mm eyepiece conversion ring 108016
- M Micrometer 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
- N USB flash drive (backup media)
- O USB Wi-Fi adapter (required for Wi-Fi/AP mode)
TYPECAMTOP Multi-Interface Camera | Dimensions #

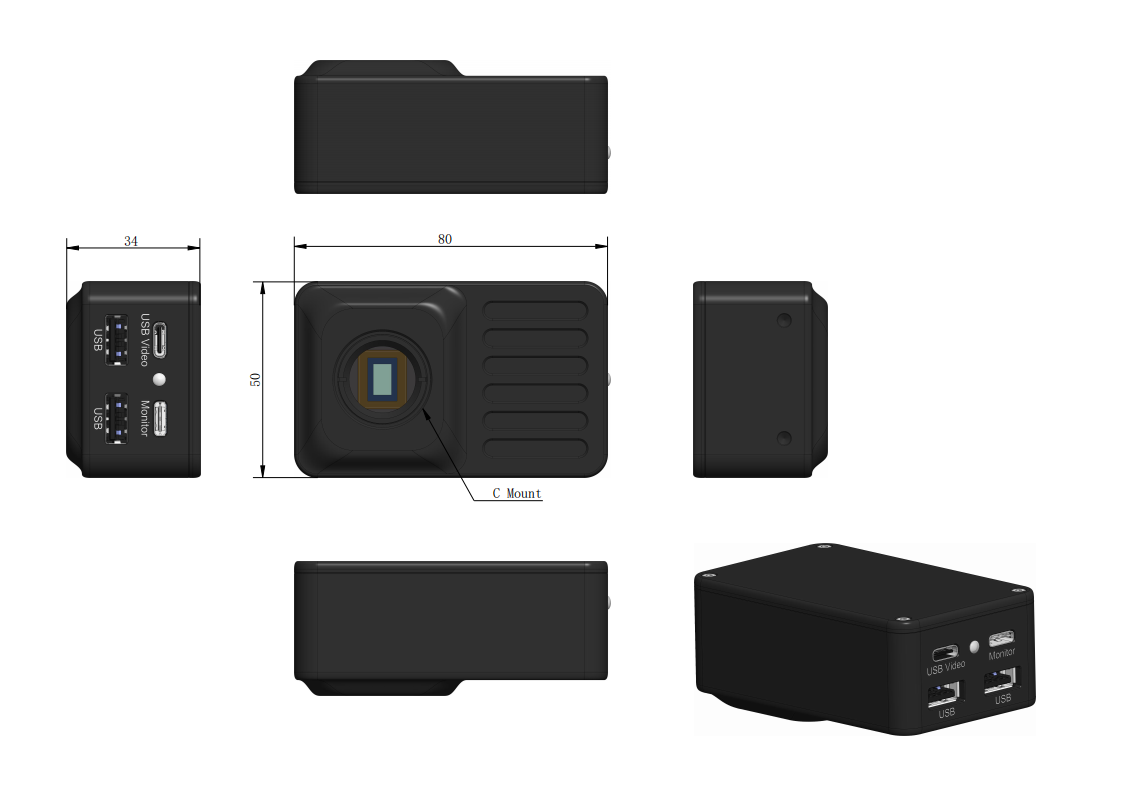

Chassis outline and interface layout
Refer to manual Figure 6-3
Confirm the mount holes and interface orientation with the dimension drawing before installation.
In-Depth Overview
The TYPECAMTOP camera series from Tupu Optoelectronics uses a USB Type-C design to supply power and transmit video through a single cable. It serves field inspections, mobile microscopy, teaching demonstrations, and industrial quality control that require rapid deployment and portability.
With a Sony Starvis/Starvis 2 back-illuminated CMOS sensor, the camera outputs 4K/1080p video via HDMI, supports Type-C connections to PCs and mobile devices, and embeds XCamView software for standalone measurement, recording, and image processing.
Technical Highlights
- Type-C one-cable connectivity: Power and video share a single Type-C link, simplifying setup for portable and on-site use.
- Sony Starvis imaging: Starvis/Starvis 2 sensors deliver high sensitivity, low dark current, and wide dynamic range (refer to each model specification).
- Native 4K HDMI output: HDMI 2.0 supports 4K/1080p adaptive switching for large-format displays and recording devices.
- ISP image processing: Hardware-level 3D noise reduction, sharpening, and ROI white balance balance image quality and stability.
- Built-in measurement and analysis: XCamView provides auto edge detection, auto measurement, and image comparison.
- Flexible networking and voice control: Supports Wi-Fi AP/STA modes (USB Wi-Fi adapter required) and optional USB voice control modules for hands-free capture and recording.
Core Advantages
-
1
Ultra-simple portability Type-C power and video via one cable make it plug-and-play for mobile and on-site workflows.
-
2
High sensitivity with low dark current Sony Starvis/Starvis 2 sensors deliver high sensitivity and low noise (see individual specification sheets for details).
-
3
Standalone operation Embedded XCamView handles measurement, recording, and image processing without a computer.
-
4
Multi-device collaboration Supports simultaneous monitor and PC output; with Android/iOS apps you can view on mobile devices (Wi-Fi requires a USB adapter).
-
5
Broad use cases Ideal for "Type-C portable microscope camera," "mobile inspection," and "voice-controlled camera" applications.
