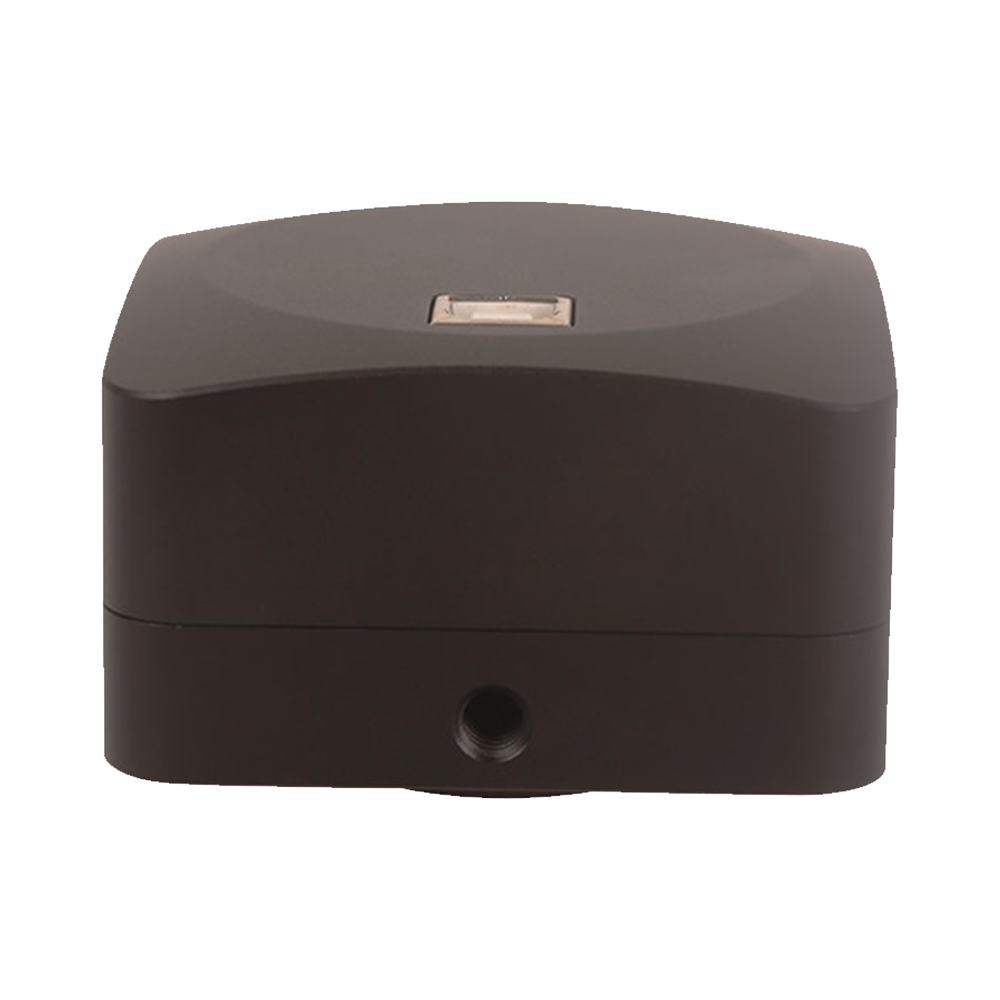

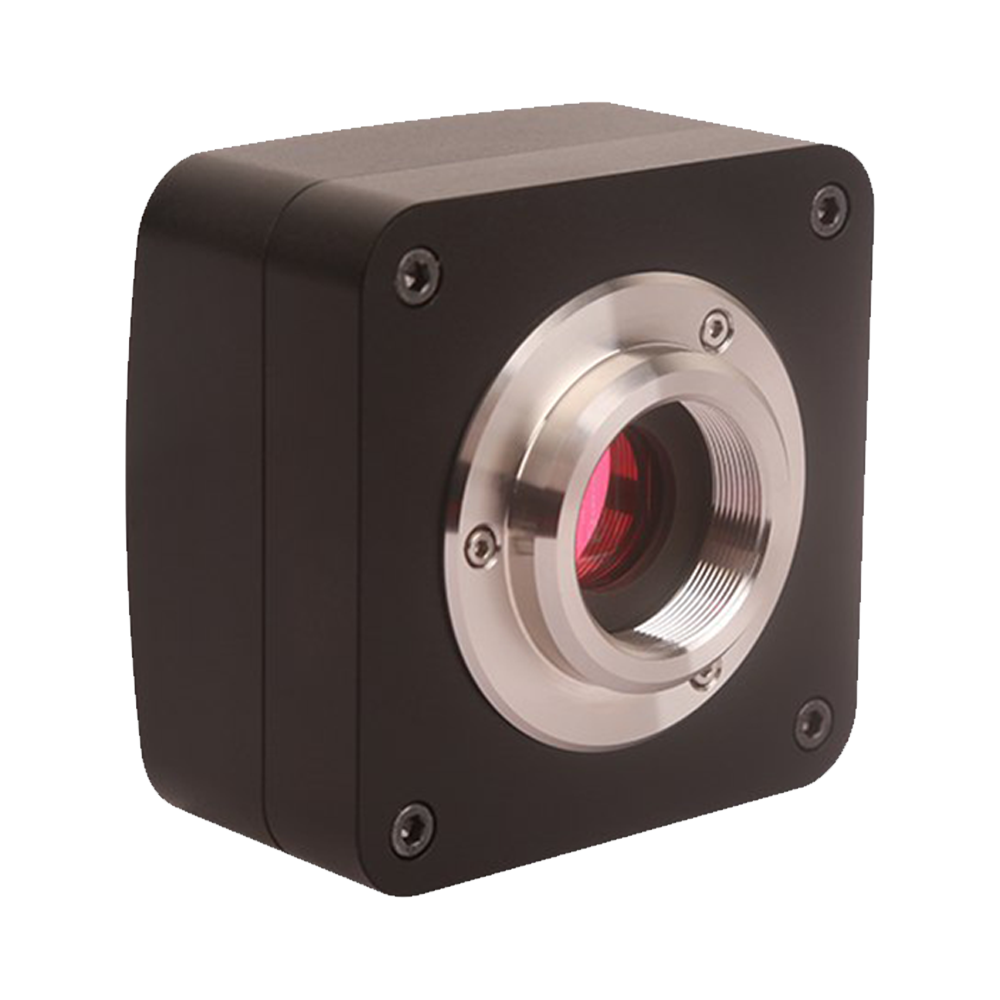

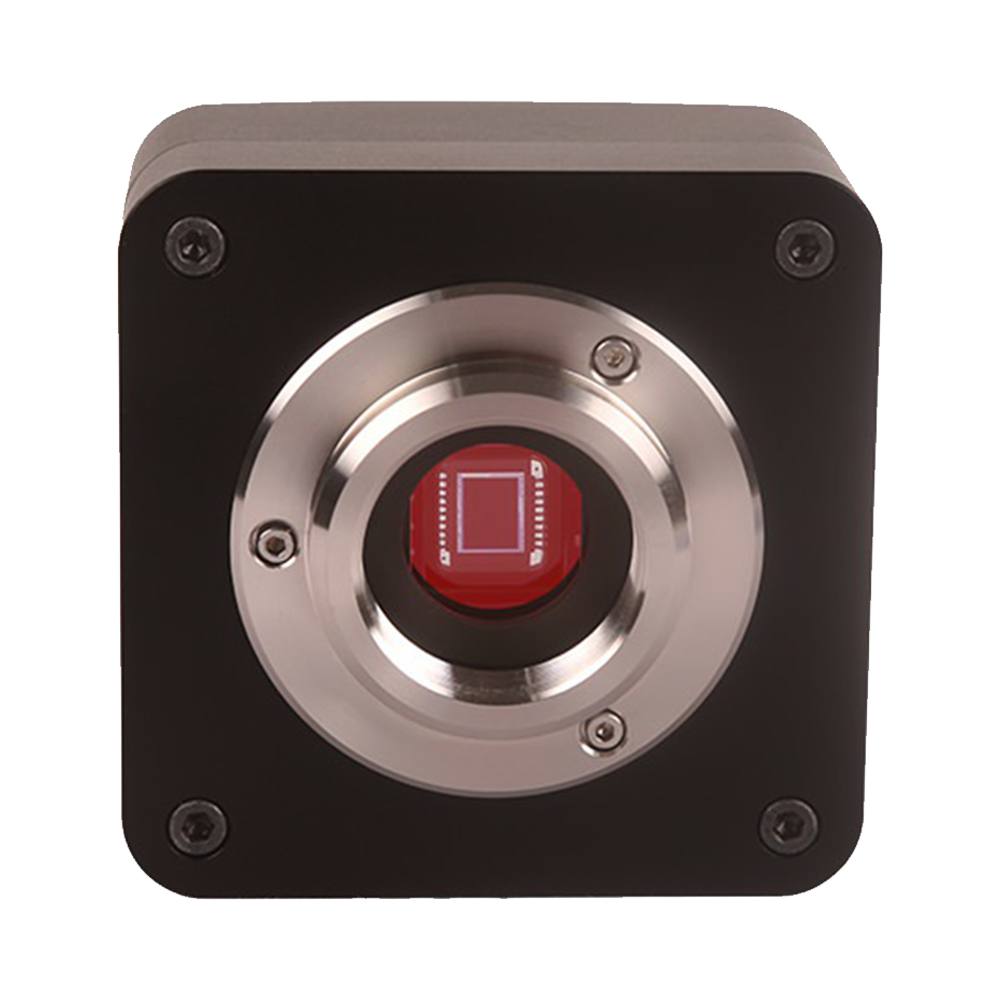

UHCCD03100KPB (Discontinued) Microscopy Camera/Microscope Camera
Product Introduction
The UHCCD series features C-mount USB2.0 microscopy CCD cameras utilizing Sony ultra-high performance HAD (Super/HAD) CCD sensors (model-dependent). The CCD global exposure (Global Exposure) effectively avoids rolling shutter distortion, making them suitable for capturing fast-moving targets. Meanwhile, the HAD structure reduces surface dark current and enhances sensitivity, enabling good imaging quality in low-light and fluorescence scenarios. The cameras employ FPGA precision timing control supporting long exposures up to approximately 240 s, facilitating capture of extremely weak signals. Stable transmission is achieved through USB2.0 (480 Mbit/s) connectivity, with included ToupView software and cross-platform SDK support (Windows/Linux/macOS/Android) for convenient system integration and secondary development.
Key Features
- Sensor: Sony Super/HAD CCD (model-dependent), high sensitivity and low dark current
- Global exposure (Global Exposure), no rolling shutter distortion, suitable for high-speed motion target imaging
- FPGA precision control, long exposure up to approximately 240 s, convenient for weak fluorescence/low-illumination imaging
- Data interface: USB2.0 (480 Mbit/s) stable transmission, plug-and-play
- Integrated aluminum alloy CNC housing, robust and durable, facilitating heat dissipation and electromagnetic shielding
- Ultra-Fine color engine: white balance, color correction, Gamma/contrast/brightness, etc. (model-dependent)
- Lens interface: C-mount standard interface, compatible with various microscopy and industrial optical systems
- Software and ecosystem: includes ToupView; provides multi-platform SDK for Windows/Linux/macOS/Android (compatible with DirectShow/TWAIN)
Product Details
| Key Parameters | |
| Model | UHCCD03100KPB (Discontinued) |
| Sensor | ICX252AQ CCD (C) |
| Effective Pixels / Resolution | 3.1MP (2048×1536) |
| Frame Rate (Full Resolution) | 6 fps@2048×1536; 41 fps@640×480 |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Imaging Performance | |
| Pixel Size | 3.45 µm × 3.45 µm |
| Sensor Size | 7.06 mm × 5.30 mm |
| Diagonal | 1/1.8" (TBD) |
| Dynamic Range | TBD |
| Bit Depth | 8-bit/12-bit |
| Sensitivity | 270 mv with 1/30s |
| Interface & Mechanical | |
| Data Interface | USB2.0 |
| GPIO | TBD |
| Lens Mount | C-mount |
| Dimensions | TBD |
| Weight | 0.67~0.8 Kg |
| Power Supply | USB2.0 Power Supply |
| Environment & Certification | |
| Operating Temperature / Humidity | -10 °C ~ +50 °C / 30%~80%RH |
| Storage Temperature / Humidity | -20 °C ~ +60 °C / 10%~60%RH |
| Operating System | Windows XP/Vista/7/8/10/11(32&64-bit)/OS X/Linux |
| Certification | CE, FCC |
Product Overview
The UHCCD03100KPB (Discontinued) is a digital camera specifically designed for microscopy imaging applications, featuring a ICX252AQ CCD (C) high-performance image sensor with the following characteristics:
- Superior Imaging Quality: 3.1MP (2048×1536) resolution, 3.45 µm × 3.45 µm pixel size, sensor size of 7.06 mm × 5.30 mm , ensuring clear detail presentation
- Imaging Characteristics: Adopts Rolling Shutter design, supports Color imaging, suitable for brightfield, darkfield, phase contrast, fluorescence and other microscopy observation methods
- High-Speed Data Transmission: Features USB2.0 interface, maximum frame rate up to 6 fps@2048×1536; 41 fps@640×480 , supports real-time preview and rapid capture
- Color Reproduction: 8-bit/12-bit color depth, dynamic range reaches TBD , faithfully reproducing sample colors
- Sensitivity Performance: Excellent low-light performance, sensitivity of 270 mv with 1/30s , suitable for weak light sample observation
- Optical Adaptation: Standard C-mount interface, compatible with various brands of microscopes, equipped with 0.5×/0.63×/1× adapters optional
- Compact Design: Overall dimensions only TBD , weight 0.67~0.8 Kg , power supply USB2.0 Power Supply , no additional power source required
- Software Support: Includes professional microscopy imaging software ToupView, supports Windows XP/Vista/7/8/10/11(32&64-bit)/OS X/Linux systems, provides measurement, annotation, stitching, focus stacking and other functions, supports C/C++, C#, Python, ImageJ, μManager and other development environments
Core Performance Indicators
Resolution
3.1MP (2048×1536)
Frame Rate
Up to 6 fps@2048×1536; 41 fps@640×480
Pixel Size
3.45 µm × 3.45 µm
Data Interface
USB2.0
Microscopy Imaging Features
Professional Microscopy Applications
Optimized for biomedical, materials science, and industrial inspection microscopy observation needs, supporting brightfield, darkfield, phase contrast, fluorescence and other observation methods
Excellent Color Reproduction
Precise color reproduction algorithms and white balance control ensure true and accurate sample colors, meeting professional needs such as pathological diagnosis
Measurement and Analysis Functions
Bundled software provides measurement tools for length, area, angles, supports annotation and statistical analysis, meeting quantitative analysis requirements
Image Processing Capabilities
Supports real-time image enhancement, focus stacking, image stitching and other advanced functions, improving observation effects and imaging quality
Recommendation
The UHCCD03100KPB (Discontinued) microscopy camera, with its excellent imaging quality, convenient operation experience, and professional software support, is the ideal choice for microscope digital upgrades. Whether for biomedical research, materials analysis, or industrial inspection, it provides clear, accurate, and reliable microscopic image recording and analysis solutions.
UHCCD03100KPB (Discontinued) Product Manual
PDF format, includes detailed technical specifications and dimensional drawings
SDK Development Kit
Supports Windows, Linux, macOS and other platforms
3D Model Files
STEP format, for mechanical design integration
Product Overview
Professional features of the UHCCD series microscopy imaging cameras
The UHCCD series is an ultra-high performance USB 2.0 C-mount CCD microscopy imaging camera launched by ToupTek Photonics. Featuring Sony Super HAD CCD image sensors with ultra-low dark current and high sensitivity characteristics, it is suitable for various scientific research and industrial imaging tasks. This series delivers outstanding performance in hardware architecture, imaging stability, and software ecosystem, making it particularly suitable for low-light environments or microscopy applications requiring high image quality.
Core Features
Sony Super HAD CCD Technology
Ultra-low dark current, high quantum efficiency, excellent imaging in low-light environments
FPGA Precise Control
Supports up to 4-minute exposure time, ensuring long-term imaging stability
USB 2.0 High-Speed Interface
Stable data transmission, strong compatibility, plug and play
Ultra-Fine Color Engine
ToupTek's proprietary color processing for accurate color reproduction and detail optimization
Performance Parameter Highlights
Resolution Range
0.8 - 5.2 MP
Multiple models availableExposure Time
0.127 ms - 240 s
Ultra-long exposure capabilityPixel Size
2.775 - 4.65 µm
High sensitivityData Bit Depth
8/12 bit
Flexible outputIn-depth Product Introduction
Sony Super HAD CCD Technology Advantages
Employs industry-leading Sony Super HAD CCD image sensors utilizing special structural design with N-type substrate, P-type body, and positive hole accumulation layer. This innovative architecture effectively reduces dark current noise and significantly improves quantum efficiency, achieving excellent low-light environment imaging capabilities. Compared to conventional CCD sensors, Super HAD technology maintains high resolution while dramatically enhancing photosensitivity, making it particularly suitable for fluorescence microscopy, dark-field imaging, and other applications requiring extremely high sensitivity.
FPGA Precision Control System
Features built-in high-performance FPGA chip for precise control and timing management of the CCD sensor. Supports ultra-long exposure times up to 4 minutes (240 seconds), ensuring sufficient signal accumulation under extremely low-light conditions. FPGA's precise clock control guarantees imaging stability during long exposure periods, effectively suppressing thermal noise and drift, making weak fluorescence signal detection and astronomical imaging possible. Also supports flexible ROI settings and pixel binning functions, further enhancing imaging flexibility.
Ultra-Fine Proprietary Color Processing Engine
Equipped with ToupTek Photonics' self-developed Ultra-Fine color engine, achieving precise color reproduction and detail optimization through advanced image processing algorithms. This engine is deeply optimized for microscopy imaging characteristics, accurately restoring true sample colors while enhancing image detail expression. Supports auto white balance, color correction, gamma adjustment, and other functions, combined with flexible 8-bit/12-bit output to meet various needs from routine observation to professional analysis.
Complete Cross-Platform SDK and Software Ecosystem
Provides powerful ToupView professional image processing software integrating image acquisition, processing, measurement, and report generation functions. Supports Windows/Linux/macOS/Android full platforms, equipped with mainstream development interfaces including C/C++, C#/VB.NET, DirectShow, Twain, facilitating system integration and secondary development. The SDK features standardized design and detailed documentation, significantly reducing development difficulty and accelerating time-to-market. Whether for research users or industrial integrators, rapid construction of imaging solutions meeting specific requirements is possible.
Industrial-Grade Robust Hardware Design
Features precision-machined CNC aluminum alloy housing with fanless, no mechanical moving parts design, relying on natural heat dissipation for long-term stable operation. The robust metal structure effectively shields electromagnetic interference and provides excellent shock resistance. The sensor front-end comes standard with IR-CUT filters or dual AR coating, effectively filtering infrared interference light and protecting the sensor from damage. USB power design simplifies wiring, achieving power supply and data transmission through a single cable, particularly suitable for space-constrained application environments.
Applications
Application demonstrations of the UHCCD series in various microscopy imaging fields
Core Advantages of UHCCD Series
Ultra-Low Noise
Sony HAD CCD ultra-low dark current
Long Exposure
Up to 240 seconds stable imaging
FPGA Precision Control
Precise timing, stable imaging
Ultra-Fine Engine
Proprietary color processing technology
Robust Structure
CNC aluminum alloy fanless design
Complete SDK
Multi-platform development support
Rich Model Range
0.8 - 5.2 MP multiple choices
USB Power
Single cable power and data transmission
