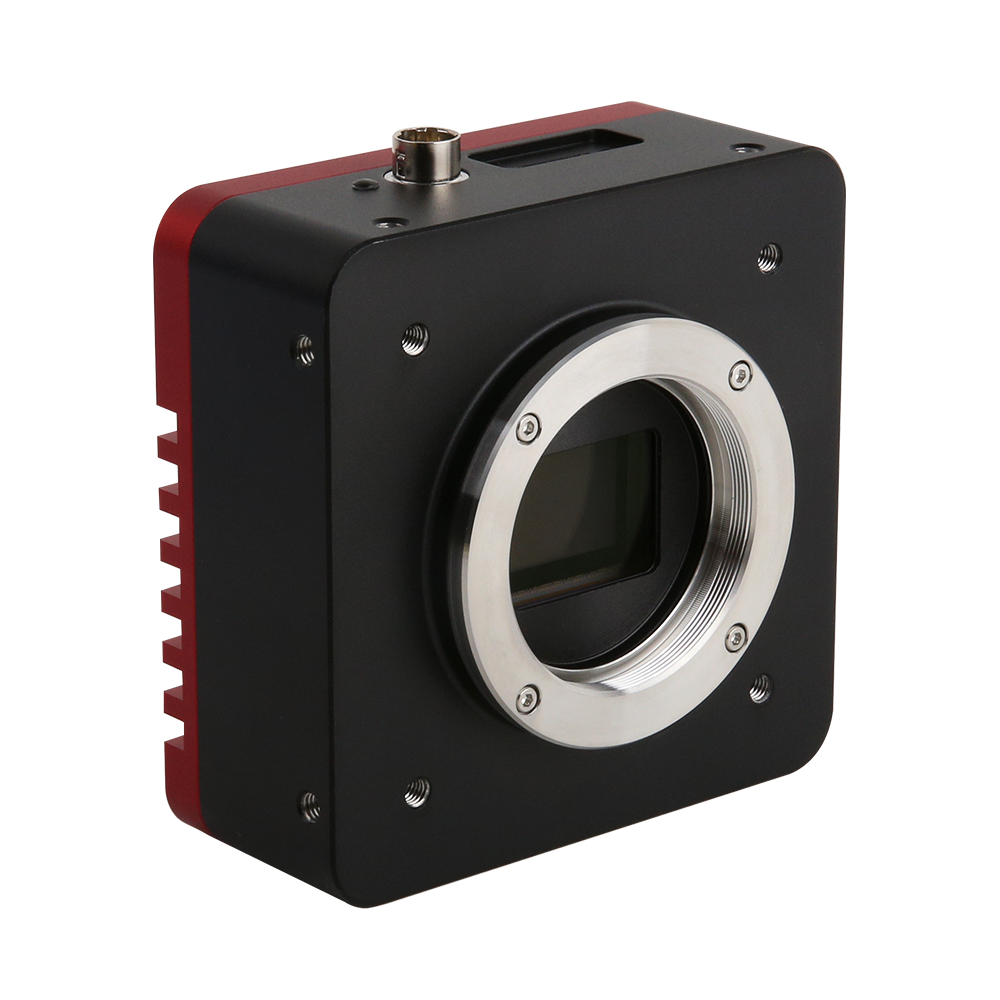

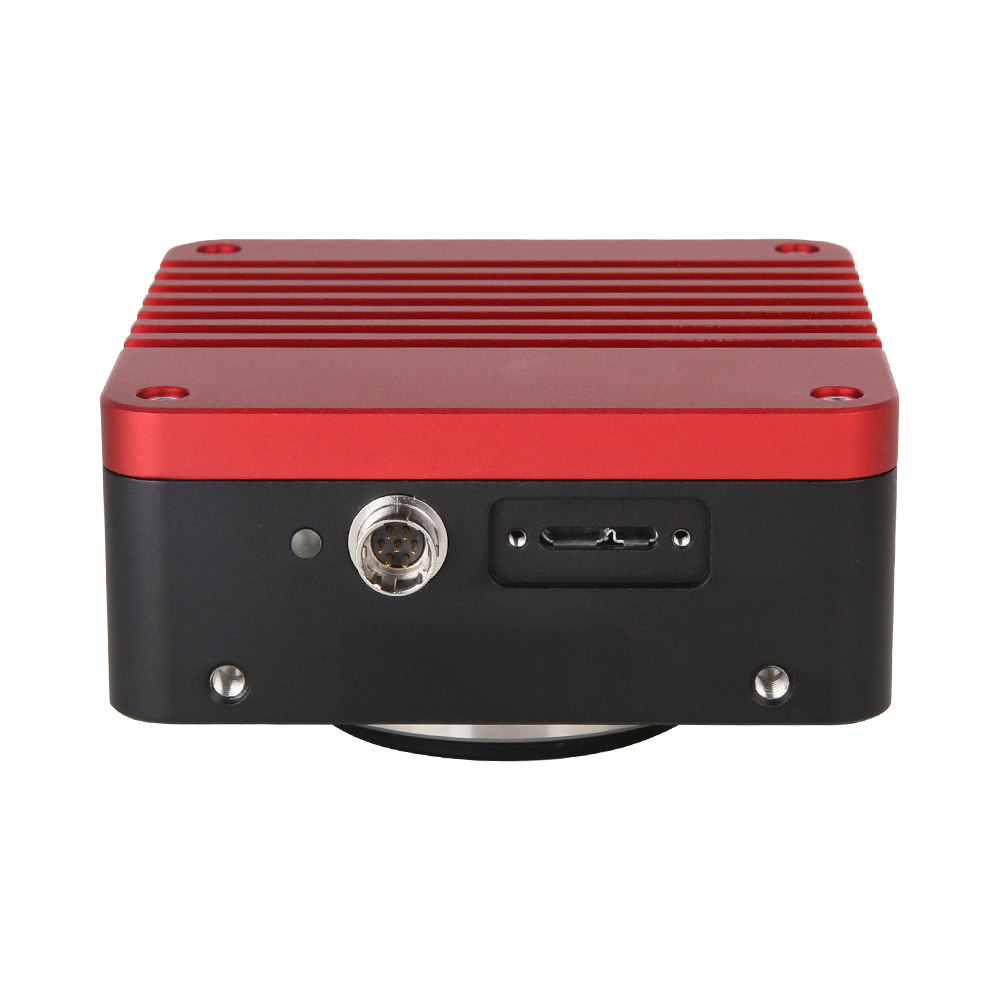

IUC9000KMA Industrial Camera/Analytical Imaging
Product Introduction
The IUC series covers the 1.7–60 MP high-resolution range, featuring 1.1″–2.7″ (APS-C / Full Frame) large-format CMOS sensors. Offering both rolling shutter (RS) and global shutter (GS) solutions based on application requirements, the series is optimized for advanced scenarios including inspection, metrology, microscopy, and machine vision. Select models are equipped with electronic EF mount, supporting autofocus and aperture control for rapid deployment and remote control of telecentric and telephoto lenses.
For connectivity and synchronization, IUC provides USB3.0, 10GigE, Camera Link, and CoaXPress (model-dependent) high-speed interfaces, capable of outputting 8/10/12/16-bit data. The series supports free-running, software/hardware triggering, and multi-camera synchronization, with optically isolated I/O for triggering/strobe control, ensuring stability during high-speed and long-duration acquisition.
Complete software ecosystem includes ToupView and cross-platform SDK (Windows / Linux / macOS; C/C++/C#/Python, etc.), compatible with DirectShow / TWAIN. Available in both standard housing and OEM board-level configurations for system integration and custom development.
Key Features
- High-resolution coverage from 1.7–60 MP, 1.1″–2.7″ large format (APS-C / Full Frame, model-dependent)
- Sensor brands: Sony / Gpixel / onsemi, etc. (model-dependent)
- Shutter types: Rolling shutter (RS) or global shutter (GS), minimizing motion distortion (model-dependent)
- Optional electronic EF mount: Supports autofocus and electronic aperture control (model-dependent)
- Multiple interfaces: USB3.0 / 10GigE / Camera Link / CoaXPress (model-dependent)
- Multi-bit depth output: 8 / 10 / 12 / 16-bit (model-dependent), enhancing weak signal detail and dynamic range
- Comprehensive I/O: Optically isolated trigger input/strobe output and programmable GPIO, supporting multi-camera synchronization
- Acquisition modes: Free-running, software trigger, external hardware trigger; supports ROI/windowing and frame rate control
- Image features: Digital Binning (2×2/3×3/4×4 model-dependent), flip, Gamma/LUT, HDR/Global-Reset (model-dependent)
- Built-in hardware ISP (model-dependent), ensuring color reproduction and real-time preview performance
- Form factors: Standard housing and OEM board-level options for embedded and system integration
- Optimized thermal design and stability for long-term continuous operation (model-dependent)
- Bundled with ToupView; provides Windows / Linux / macOS SDK, compatible with DirectShow / TWAIN
- Supports field firmware upgrades; CE / FCC / RoHS certified (model-dependent)
Product Details
| Key Parameters | |
| Model | IUC9000KMA |
| Sensor | Sony IMX533CLK-D |
| Effective Pixels / Resolution | 9MP (2992×3000) |
| Frame Rate (Full Resolution) | 40 fps@2992×3000; 62 fps@1488×1500; 186 fps@992×998 |
| Shutter Type | Rolling Shutter |
| Color Type | Monochrome |
| Imaging Performance | |
| Pixel Size | 3.76 µm × 3.76 µm |
| Sensor Size | 11.28 mm × 11.28 mm |
| Diagonal | 1" (15.95 mm) |
| Dynamic Range | 67.9 dB (HCG) / 70.0 dB (LCG) |
| Bit Depth | 8/14-bit |
| Sensitivity | 877 mV |
| Interface & Mechanical | |
| Data Interface | USB3.0 (USB3.1 GEN1) |
| GPIO | 1× optically isolated input, 1× optically isolated output, 2× non-isolated I/O |
| Lens Mount | C-mount |
| Dimensions | 88 mm × 88 mm × 36.3 mm |
| Weight | 564 g |
| Power Supply | DC 12 V |
| Environment & Certification | |
| Operating Temperature / Humidity | -10 °C to +50 °C / 20% to 80% non-condensing |
| Storage Temperature / Humidity | -30 °C to +70 °C / TBD |
| Operating System | Windows/Linux/macOS/Android |
| Certification | CE, FCC |
Product Overview
The IUC9000KMA represents the pinnacle of large-format industrial camera engineering, specifically designed for applications demanding exceptional resolution and imaging quality. Featuring a Sony IMX533CLK-D high-performance image sensor, this platform delivers professional-grade capabilities that establish new standards for precision imaging in both scientific research and advanced industrial applications.
Large Format Sensor Architecture
The IUC Series pioneered the integration of professional-grade large format sensors within industrial camera systems, delivering 9MP (2992×3000) resolution capabilities that surpass conventional industrial camera specifications. The advanced 3.76 µm × 3.76 µm pixel architecture across 11.28 mm × 11.28 mm sensor formats provides unprecedented image quality for applications where detail resolution and field of view represent critical performance parameters that cannot be achieved through smaller sensor configurations.
The sophisticated Rolling Shutter implementation ensures precise temporal control essential for high-resolution imaging applications where timing accuracy directly impacts measurement reliability and image quality. This design approach supports both static high-resolution documentation and dynamic imaging scenarios while maintaining consistent performance characteristics across diverse operational conditions.
Professional Connectivity Architecture
The comprehensive multi-interface architecture featuring USB3.0 (USB3.1 GEN1) connectivity options provides unprecedented deployment flexibility for high-resolution imaging systems requiring substantial data throughput capabilities. This sophisticated approach enables maximum frame rates reaching 40 fps@2992×3000; 62 fps@1488×1500; 186 fps@992×998 while supporting diverse system architectures from compact research installations through enterprise-scale automated inspection systems requiring sustained high-bandwidth data transmission.
Advanced image processing capabilities incorporate 8/14-bit color depth processing with dynamic range specifications exceeding 67.9 dB (HCG) / 70.0 dB (LCG) . These parameters ensure exceptional image quality and color accuracy essential for applications requiring precise color discrimination and high-resolution detail analysis across professional photography, scientific documentation, and precision manufacturing applications.
Professional Lens Integration
The revolutionary integration of professional lens compatibility including EF autofocus capabilities on select models represents a significant advancement that bridges traditional industrial imaging and professional photography technologies. This capability addresses applications requiring both the precision of industrial systems and the optical flexibility of professional camera equipment, enabling deployment scenarios previously impossible with conventional industrial camera platforms.
The optimized sensitivity specifications of 877 mV combined with large format sensor capabilities enable reliable performance across challenging lighting conditions while maintaining exceptional image quality. The standard C-mount interface options provide universal compatibility with both industrial lens systems and professional photography optics, enabling unprecedented optical flexibility for specialized applications.
Enterprise System Architecture
The professional mechanical design accommodating large format sensors while maintaining industrial reliability standards represents a significant engineering achievement. The platform dimensions of 88 mm × 88 mm × 36.3 mm with system weight of 564 g reflect the substantial engineering required to deliver professional-grade large format performance within industrial system constraints while ensuring reliable operation in demanding environments.
Comprehensive software development support includes professional SDK compatibility across C/C++, C#, Python, DirectShow, GenICam, TWAIN development environments and Windows/Linux/macOS/Android operating system platforms. This extensive compatibility ensures seamless integration with existing automation infrastructure while enabling custom application development that leverages the unique large format capabilities for specialized scientific research and precision manufacturing requirements.
Professional Performance Specifications
Resolution
9MP (2992×3000)
Frame Rate
Up to 40 fps@2992×3000; 62 fps@1488×1500; 186 fps@992×998
Pixel Size
3.76 µm × 3.76 µm
Data Interface
USB3.0 (USB3.1 GEN1)
Professional Application Capabilities
Large Format Performance
Professional APS-C and full frame sensor formats deliver exceptional image quality and field of view capabilities essential for high-resolution scientific documentation, precision manufacturing inspection, and professional photography applications
Professional Autofocus
Select models feature EF lens autofocus compatibility, enabling integration with professional photography optics and automated focusing systems for applications requiring precise optical control and flexibility
Multi-Interface Connectivity
Comprehensive connectivity through USB 3.0, 10 GigE, and Camera Link interfaces provides deployment flexibility for diverse system architectures requiring high-bandwidth data transmission capabilities
Scientific Integration
Professional-grade image quality and comprehensive software development support enable integration with advanced scientific instrumentation and research applications requiring exceptional resolution and color accuracy
Professional Excellence
The IUC9000KMA large format industrial camera represents the convergence of professional imaging quality and industrial reliability. This platform delivers exceptional performance for the most demanding applications requiring superior resolution, image quality, and optical flexibility. Whether deployed in scientific research environments, precision manufacturing systems, or professional photography applications, this camera provides the ultimate solution for projects where image quality represents the primary determining factor in system selection and deployment success.
IUC9000KMA Professional Documentation
Comprehensive PDF documentation including detailed technical specifications, performance characteristics, and professional integration guidelines
Professional SDK Suite
Enterprise-grade development resources supporting Windows, Linux, macOS with professional imaging examples and integration guides
Professional CAD Models
High-precision STEP format files optimized for professional system integration and optical design applications
Package List #
Standard configuration and packing details for IUC Series large-format industrial cameras (USB 3.0 / GigE / CameraLink)
Recommended Accessories
- Camera body – IUC Series model
- I/O cable – 7-pin cable or extension
- USB 3.0 cable – Micro USB 3.0 cable
- Power supply – 12 V / 3 A aviation power adapter
- Lens (optional) – M42 or M52 mount lens
Recommended Accessories
- Camera body – IUC Series model
- I/O cable – 7-pin cable or extension
- Signal cable – GigE cable
- Power supply – 12 V / 3 A aviation power adapter
- Lens (optional) – M42 or M52 mount lens
Recommended Accessories
- Camera body – IUC Series model
- I/O cable – 7-pin cable or extension
- Signal cable – CameraLink cable
- Power supply – 12 V / 3 A aviation power adapter
- Lens (optional) – M42 or M52 mount lens
Product Dimensions #
Dimensions overview for IUC Series large-format industrial cameras
The IUC Series delivers high-performance APS-C and full-frame industrial cameras from Tupu Photonics, spanning resolutions from 1.7 MP to 60 MP for scientific inspection, high-resolution industrial metrology, and high-speed imaging. Built around premium CMOS sensors from Sony and Gpixel, the series supports USB 3.0, 10GigE, and CameraLink high-speed interfaces. Select models include Canon EF-mount autofocus to provide flexible solutions for precision imaging and system integration.
Key Features
Large-format high-resolution sensors
APS-C and full-frame CMOS up to 60 MP
Flexible high-speed interfaces
USB 3.0 / 10GigE / CameraLink options
Autofocus capability
EF-mount autofocus supported on selected models
Hardware image processing engine
Built-in ISP for real-time noise and color optimization
Performance Highlights
Resolution range
1.7–60 MP
Ultra-high-resolution imagingMaximum frame rate
Up to 302 fps
Model-dependentDynamic range
70+ dB
High-contrast fidelitySensor formats
APS-C / FF
Large light collection areaIn-depth Product Overview
Large-format sensor platform
Incorporating Sony Pregius, Pregius S, and Gpixel large-format CMOS sensors, the IUC Series offers pixel sizes from 2.4 µm to 4.8 µm for outstanding detail, sensitivity, and low noise. The lineup covers APS-C and full-frame formats, achieving resolutions up to 60 MP and supporting pixel binning and ROI modes for application-tailored throughput.
High-speed data transmission flexibility
USB 3.0, 10GigE, and CameraLink interfaces ensure high-bandwidth transmission and versatile integration. Models such as the IUC1700KMA-CL480 reach 302 fps @ 1600×1100, while full-frame high-resolution variants balance frame rate and clarity via multi-resolution modes. Selectable 8-bit or 12-bit output accommodates inspection and analysis workflows.
Autofocus and optical compatibility
Autofocus-enabled models support Canon EF-mount lenses for flexible scene coverage. The integrated hardware ISP handles real-time noise reduction, color reproduction, and gamma correction, preserving fine detail with efficient output. Exposure control spans 6 µs to 15 s to support both high-speed capture and long-exposure imaging.
Industrial reliability design
Opto-isolated 7-pin I/O supports hardware trigger, software trigger, and free-run modes for seamless automation integration. DC 12 V power consumption stays below 5 W, with operating temperatures from -10 to 50 °C and support for in-field firmware upgrades. The metal chassis ensures long-term stability in demanding industrial environments.
Cross-platform software ecosystem
ToupView software and SDKs for Windows, Linux, macOS, and Android provide APIs for C/C++, C#/VB.NET, Python, Java, DirectShow, and TWAIN. Combined with the hardware ISP, the multi-platform SDK speeds deployment into scientific research, automation, and high-resolution inspection systems.
Applications
Showcasing IUC Series deployments across industrial imaging
IUC Series Key Advantages
Large-format imaging
APS-C / full-frame sensors
Ultra-high resolution
Up to 60 MP
Autofocus ready
Canon EF support
Triple interface options
USB / GigE / CameraLink
Hardware ISP
Real-time image processing
Wide dynamic range
70+ dB
Low noise
0.03 e-/s/pix
Cross-platform SDK
Multi-language support
