X5FCAM4K Series
Product Introduction
The X5FCAM4K HDMI camera is a multi-output camera (HDMI+Wi-Fi+USB) designed by Toptic Optoelectronics. In X5FCAM, 'X' represents multi-interface CMOS camera and 'F' represents autofocus. It features an ultra-high performance CMOS sensor. The camera can directly connect to HDMI displays, connect to computers via Wi-Fi or USB, and save images and videos to SD cards or USB flash drives for on-site analysis and subsequent research.
The camera itself features an embedded ARM core, displaying camera control functions as a control panel directly on the HDMI display. Furthermore, users can directly control various camera parameters using a USB mouse through the mouse interface. Additionally, the HDMI display interface bottom features various toolbar buttons for user operation.
The key feature of the X5FCAM4K HDMI camera is its embedded autofocus system, enabling autofocus on specific areas of the scene.
By inserting a Wi-Fi module or connecting via USB cable to a computer, users can directly control the camera hardware using the included ToupView or ToupLite software.
Product Features
- Sony Starvis 2 back-illuminated CMOS sensor
- 4K HDMI/Wi-Fi/USB multi-interface simultaneous output
- 4K/1080P HDMI output adaptive switching
- 4K 60 fps low-latency HDMI output, average latency 40 ms
- SD card/USB flash drive capture of videos or images with local preview and playback support
- Support for RAW format image capture and display
- Automatic photo upload to server via network
- USB voice control module support for real-time voice command control of photo capture, recording, and freeze operations
- New browse interface with rich file operation functions, image-to-image comparison, image-to-live video comparison, multi-image depth synthesis, multi-image stitching
- Multiple focus modes with adjustable focus area size; focus + depth synthesis mode for high depth-of-field images from multiple focus areas at high magnification; automatic depth synthesis mode
- Powerful ISP functions with significant sharpening and 3D noise reduction effects, precise ROI white balance
- Real-time video depth synthesis function, real-time video WDR output function
- Real-time stitching function for higher quality images through real-time processing
- Biological and stereo microscope default ISP parameter switching for convenient secondary adjustment and optimization
- Embedded XCamView software providing rich image processing and measurement functions, supporting auto edge detection and auto measurement
- ToupView/ToupLite software for more convenient PC operation
- iOS/Android mobile applications, free download from app stores
HDMI/USB3/Wi-Fi 4K C-Mount Autofocus Camera
| Model | Output Interface | Sensor | Resolution | Frame Rate | Lens Mount |
Key Features |
|---|---|---|---|---|---|---|
| X5FCAM4K8MPA | HDMI Wi-Fi USB |
Sony IMX678(C)
1/1.8" (7.68×4.32 mm)
|
8MP | 60 fps@3840×2160 | C-Mount | Autofocus 4K Ultra HD C-Mount SD Card Storage Wi-Fi Connectivity |
Product Features
Sony Starvis 2 back-illuminated CMOS sensor
4K HDMI/Wi-Fi/USB multi-interface simultaneous output
4K/1080P HDMI output adaptive switching
4K 60 fps low-latency HDMI output, average latency 40 ms
SD card/USB flash drive capture of videos or images with local preview and playback support
Support for RAW format image capture and display
Automatic photo upload to server via network
USB voice control module support for real-time voice command control of photo capture, recording, and freeze operations
New browse interface with rich file operation functions, image-to-image comparison, image-to-live video comparison, multi-image depth synthesis, multi-image stitching
Multiple focus modes with adjustable focus area size; focus + depth synthesis mode for high depth-of-field images from multiple focus areas at high magnification; automatic depth synthesis mode
Powerful ISP functions with significant sharpening and 3D noise reduction effects, precise ROI white balance
Real-time video depth synthesis function, real-time video WDR output function
Real-time stitching function for higher quality images through real-time processing
Biological and stereo microscope default ISP parameter switching for convenient secondary adjustment and optimization
Embedded XCamView software providing rich image processing and measurement functions, supporting auto edge detection and auto measurement
ToupView/ToupLite software for more convenient PC operation
iOS/Android mobile applications, free download from app stores
X5FCAM4K8MPA Multi-Interface Camera | Package Contents #

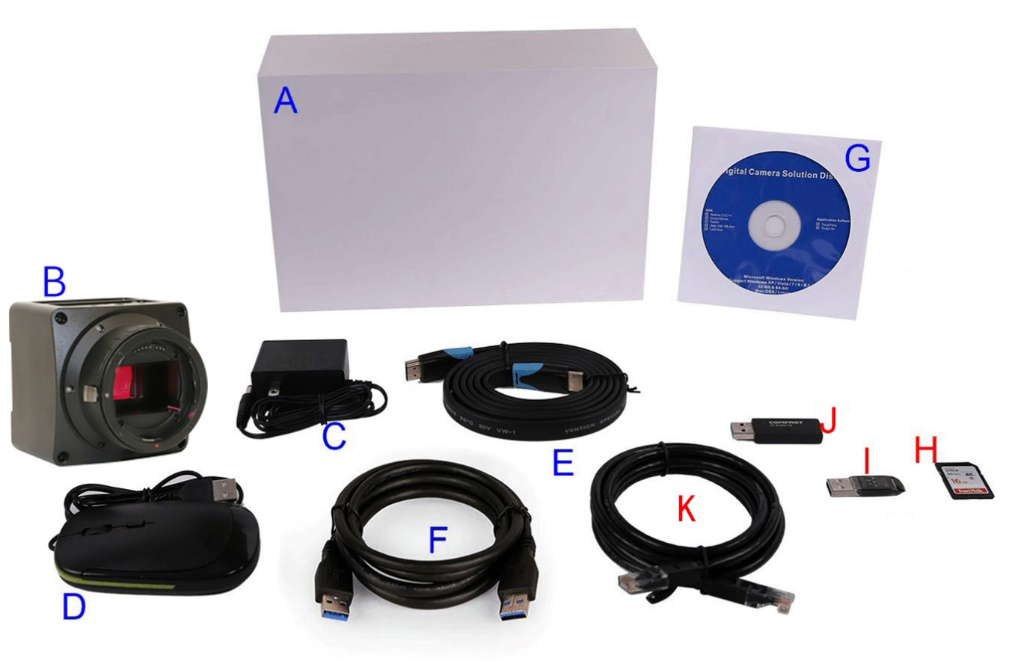

Standard Packing List
- A Camera box: 25.5 cm × 17.0 cm × 9.0 cm (1 pc, approx. 1.57 kg per box)
- B X5FCAM4K8MPA camera ×1
- C Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 1 A (GS12U12-P1I / GS12E12-P1I)
- D USB mouse ×1
- E HDMI 2.0 cable ×1
- F High-speed USB 2.0 Type-A to Type-A gold-plated cable (2.0 m)
- G Drivers and application disc (Ø12 cm)
Optional Accessories
- H SD card (≥16 GB, Class 10)
- I Adjustable eyepiece tube adapters 108001/AMA037, 108002/AMA050, 108003/AMA075
- J Fixed eyepiece tube adapters 108005/FMA037, 108006/FMA050, 108007/FMA075
- K Ø30 mm eyepiece conversion ring 108015
- L Ø30.5 mm eyepiece conversion ring 108016
- M Stage micrometers 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
- N USB flash drive (backup media)
- O USB Wi-Fi adapter (required for Wi-Fi/AP mode)

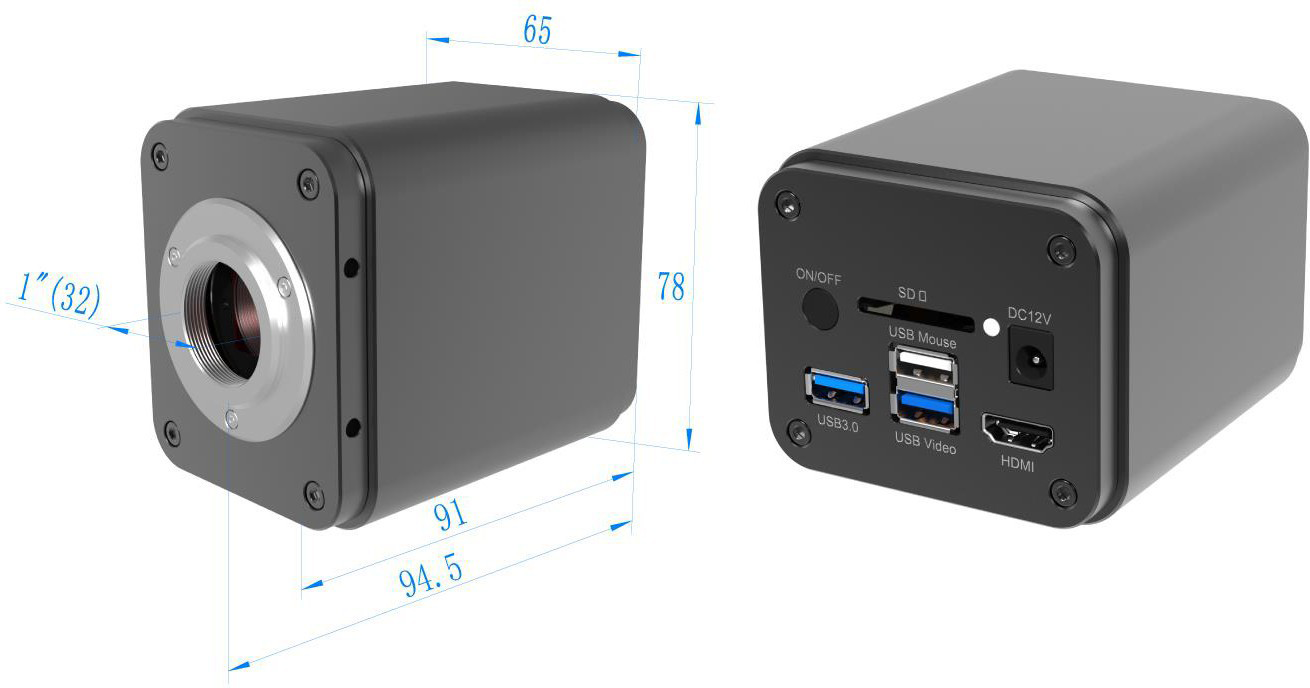

X5FCAM4K8MPA Multi-Interface Camera | Product Dimensions #
Enclosure layout and interface distribution
Refer to Fig. 5-3 for heat dissipation windows and mounting holes
Confirm mounting hole positions and connector orientation with the dimension diagram before installation.
In-Depth Overview

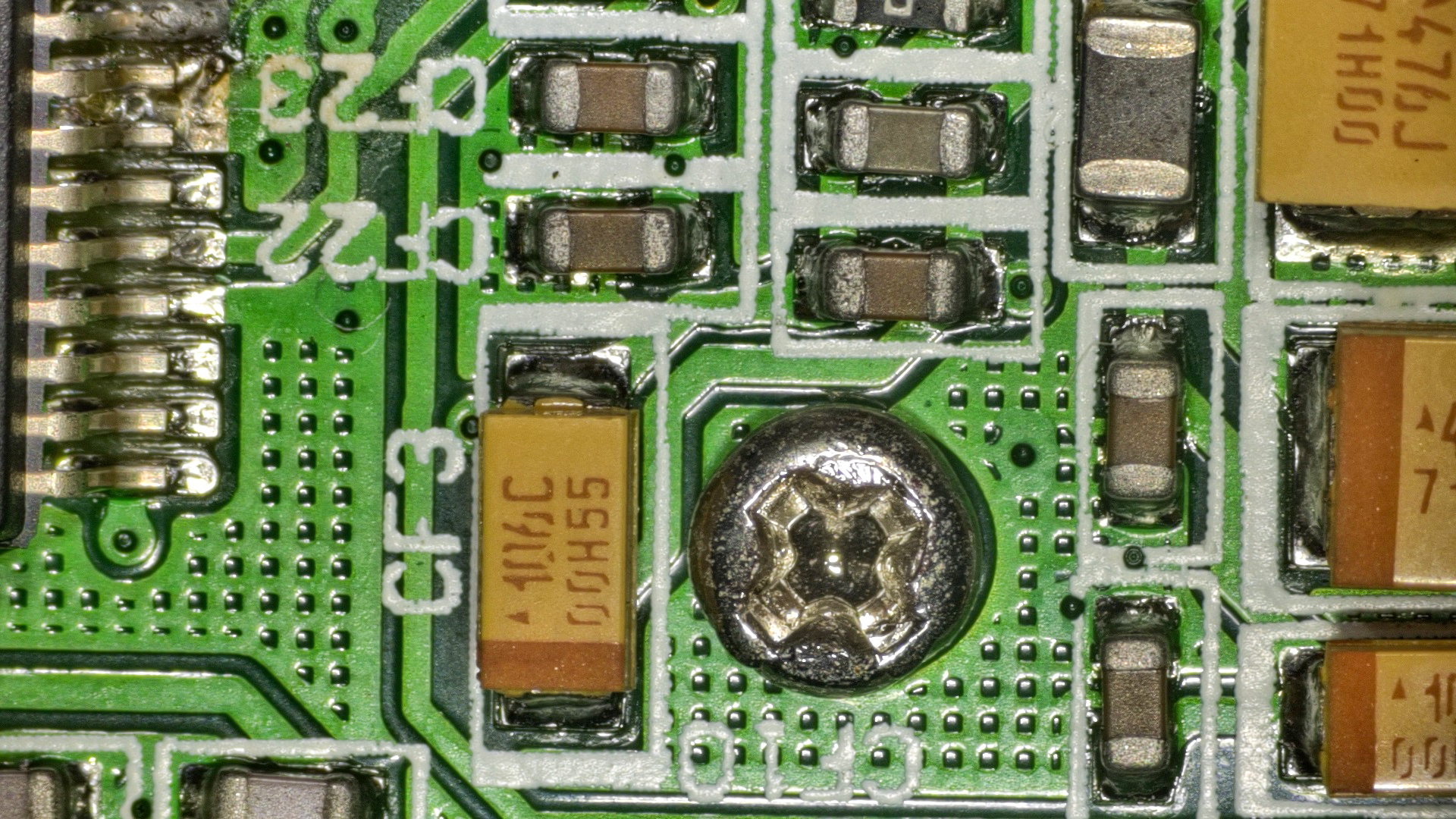

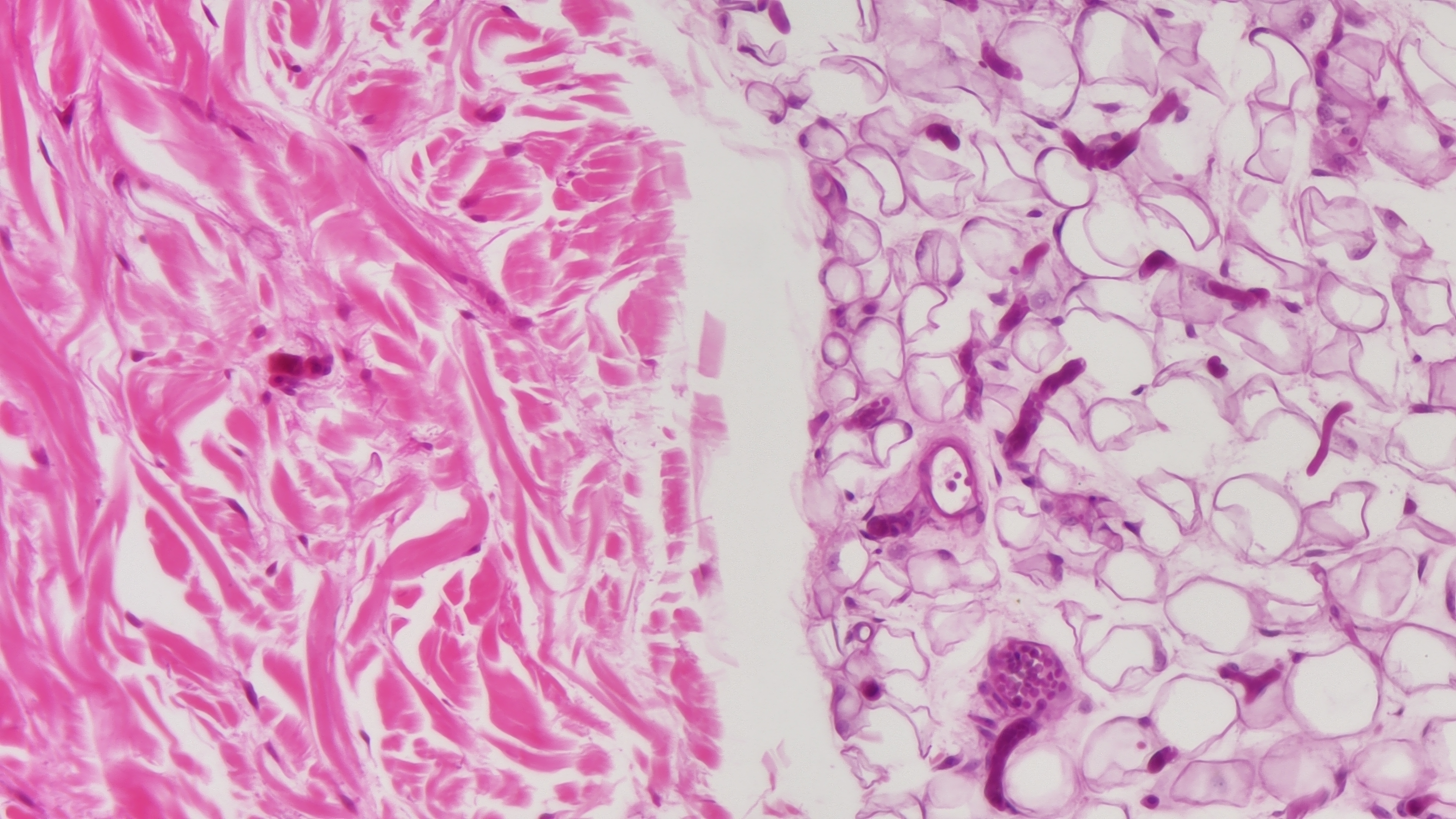

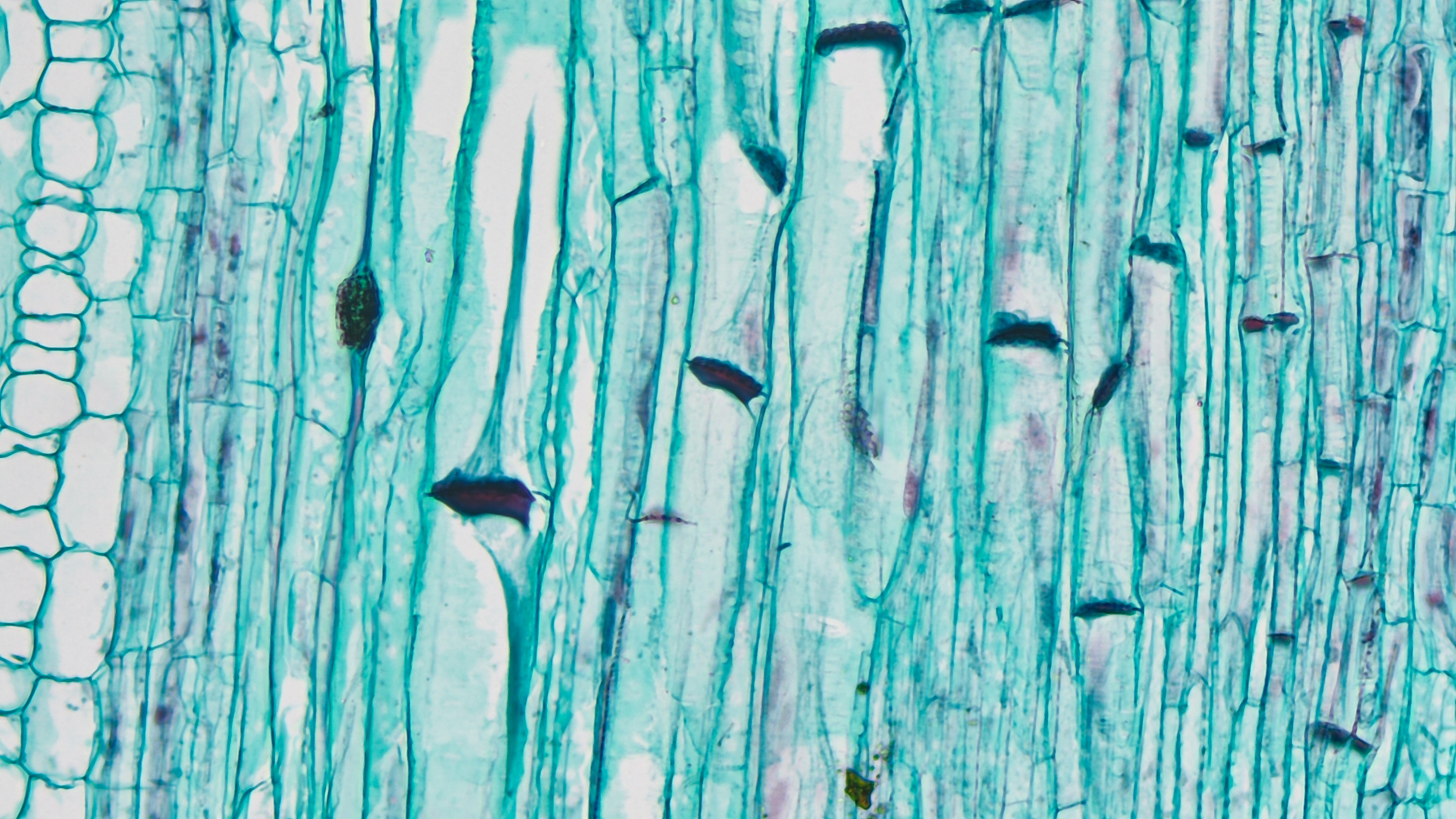

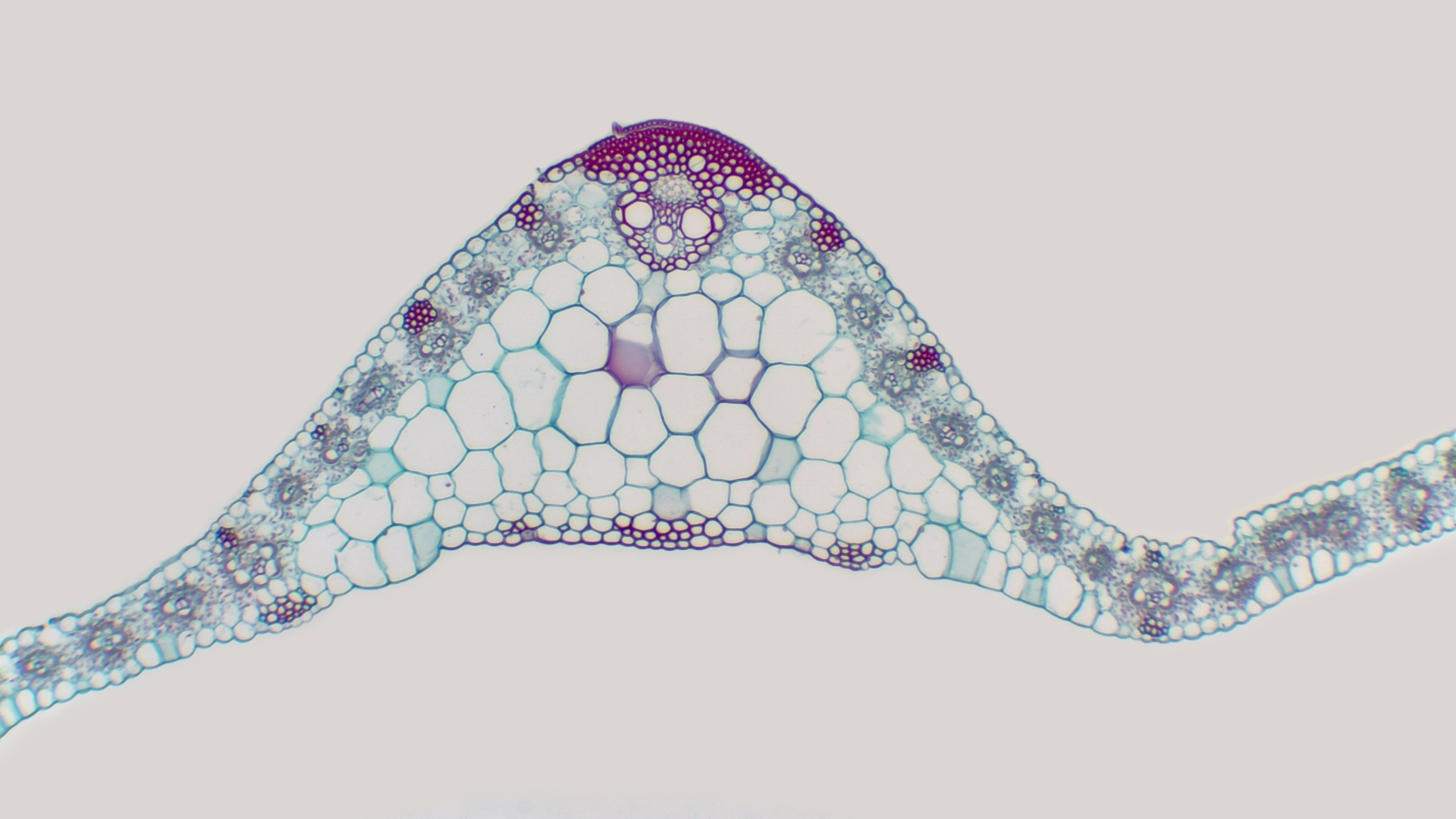

The X5FCAM4K 4K auto-focus camera series is built around a Sony Starvis 2 high-sensitivity CMOS sensor for high-magnification microscopy and industrial automation. With a C-mount lens interface, the camera outputs through HDMI, USB 3.0 and Wi-Fi simultaneously, supporting wireless image transmission. Auto-focus, depth fusion, 4K high-resolution output and multi-platform control are integrated to support advanced laboratories, in-line inspection and high-efficiency deployments.
Key Functions
- Sony Starvis 2 CMOS sensor delivering 8 MP 4K resolution
- HDMI, USB 3.0 and Wi-Fi multi-interface output
- Intelligent features such as auto-focus, depth fusion and video recording
- Supports SD card or USB drive storage for convenient local saving
- C-mount lenses with strong compatibility across imaging needs
- Compatible with Windows, Linux, macOS and other operating systems
Core Advantages
- High-sensitivity CMOS improves low-light and dynamic performance
- Wireless Wi-Fi output simplifies sharing and collaboration
- Depth fusion suits high magnification and multi-layer samples
- Compact chassis fits lab benches and production lines
- High value for scaled deployments and automation projects
