SWIR Series UMV Camera / Short-Wave Infrared

For purchases, trials, OEM, or ODM, please contact us

Introduction

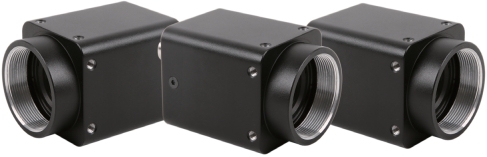

SWIR Series UMV Camera

SWIR series CameraLink interface short-wave infrared camera which adopts SONY or nationally produced InGaAs sensor. This camera has high quantum efficiency and high sensitivity, suitable for many common SWIR applications in different industrial segments.

Chargement...

SONY SenSWIR InGaAs sensor
Precise temperature control, the temperature difference can reach 10-25 degrees Celsius
Spectral response range: 400nm-1800nm
5um pixel size
Global shutter
Supportinterface: USB3 / GigE / MIPI(developing) / CameraLink(developing)
12-bit ADC
4Gb memory
Support external IO trigger control
High framerate exceeding official parameters

Related models

Model Number	Image Sensor	Pixel Size(μm)	Dynamic Range SNR	Data Interface	FPS/Resolution-8bit	Binning	Exposure Time Dimensions
5.0MP IMX992
SWIR5000KMB-UMV 20240129	5.0M/IMX992(M,GS) 1/1.4” (8.94x7.09) Without TEC	3.45x3.45	51.5dB 48.5dB	USB3	61.9@2560x2048 135.7@1280x1024	1x1 1x1	15us~60s 33mm
3.0MP IMX993
SWIR3000KMB-UMV 20240612	3.0M/IMX993(M,GS) 1/1.8”(7.07x5.3) Without TEC	3.45x3.45	51.5dB 48.5dB	USB3	93@2048x1536 176@1024x768	1x1 1x1	15us~60s 33mm
1.3MP IMX990
SWIR1300KMB-UMV 20231102	1.3M/IMX990(M,GS) 1/2”(6.40x5.12) Without TEC	5x5	58.7dB 52.6dB	USB3	223@1280x1024 428@640x512	1x1 1x1	15us~60s 33mm
0.33MP IMX991
SWIR330KMB-UMV 20231102	0.33M/IMX991(M,GS) 1/4”(3.20x2.56) Without TEC	5x5	58.7dB 52.6dB	USB3	428.1@640x512 227.7@320x256	1x1 1x1	15us~60s 33mm
Model Number	Image Sensor	Pixel Size(μm)	Dynamic Range SNR	Data Interface	FPS/Resolution-8bit	Binning	Exposure Time Dimensions

specification

Model Parameter	SWIR5000KMB-UMV
Model Parameter	5.0M pixels 1/1.4” CMOS USB3.0 industrial camera
Camera
Sensor model	Sony IMX992-AABJ-C
Sensor Type	InGaAs
Spectral Range	400nm-1700nm
Pixel size	3.45 µm x 3.45 µm
Sensor size	1/1.4”
ADC	12 Bit / 8 Bit
Frame rate	8 Bit：61.9fps@2560x2048、135.7fps@1280x1024 12 Bit：35.5fps@2560x2048、135.7fps@1280x1024
Image Buffer	512MByte
Conversion Gain	10.3e/ADU（HCG）17.29e/ADU（LCG）
Dynamic range	51.36dB（HCG）51.47dB（LCG）
Readout Noise	111.88e（HCG）186.61e（LCG）
Full Well	41.39ke（HCG）69.92ke（LCG）
SNRmax	46.17dB（HCG）48.45dB（LCG）
Sensitivity	TBD
Dark current	TBD
Gain range	1x-15x
Exposure time	15µs-60sec
Shutter	Global shutter
Binning	Software2x2, 3x3, 4x4
Data interface	USB3
Digital I/O	One optical-coupling isolated input, one optical-coupling isolated output, one non-isolated input and output
Data Format	8bit / 12bit
Optical filter	400-1800nm(default); 1030-1800nm(optional)
CRA	2.35 Deg
General specification
Power supply	Power with USB3.0
Power consumption	<2.11W
Temperature	Working temperature -20~60℃, storage temperature -40~85℃
Humidity	20%-80%, no condensation
Size	33mm×33mm×38mm
Weight	70g
Lens mount	C-mount
Software	ToupView/ SDK
Operating system	Win32/WinRT/Linux/macOS/Android
Certification	CE, FCC

Model Parameter	SWIR3000KMB-UMV
Model Parameter	3.0M pixels 1/1.8” CMOS USB3 industrial camera
Camera
Sensor model	Sony IMX993-AABJ-C
Sensor Type	InGaAs
Spectral Range	400nm-1700nm
Pixel size	3.45 µm x 3.45 µm
Sensor size	1/1.8”
ADC	12 Bit / 8 Bit
Frame rate	8 Bit：93fps@2048x1536、176fps@1024x768 12 Bit：57fps@2048x1536、176fps@1024x768
Image Buffer	512MByte
Conversion Gain	10.3e/ADU（HCG）17.29e/ADU（LCG）
Dynamic range	51.36dB（HCG）51.47dB（LCG）
Readout Noise	111.88e（HCG）186.61e（LCG）
Full Well	41.39ke（HCG）69.92ke（LCG）
SNRmax	46.17dB（HCG）48.45dB（LCG）
Sensitivity	TBD
Dark current	TBD
Gain range	1x-15x
Exposure time	15µs-60sec
Shutter	Global shutter
Binning	Software2x2, 3x3, 4x4
Data interface	USB3
Digital I/O	One optical-coupling isolated input, one optical-coupling isolated output, one non-isolated input and output
Data Format	8bit / 12bit
Optical filter	400-1800nm(default); 1030-1800nm(optional)
CRA	2.35 Deg
General specification
Power supply	Power with USB3.0
Power consumption	<2.11W
Temperature	Working temperature -20~60℃, storage temperature -40~85℃
Humidity	20%-80%, no condensation
Size	33mm×33mm×38mm
Weight	70g
Lens mount	C-mount
Software	ToupView/ SDK
Operating system	Win32/WinRT/Linux/macOS/Android
Certification	CE, FCC

Model Parameter	SWIR1300KMB-UMV
Model Parameter	1.3M pixels 1/2” CMOS USB3 industrial camera
Camera
Sensor model	Sony IMX990-AABJ-C
Sensor Type	InGaAs
Spectral Range	400nm-1700nm
Pixel size	5.0 µm x 5.0 µm
Sensor size	1/2”
ADC	12 Bit / 8 Bit
Frame rate	8 Bit：223fps@1280 x 1024、428fps@640 x 512 12 Bit：118.7fps@1280 x 1024、227.7fps@640 x 512
Image Buffer	512MByte
Conversion Gain	42.8e/ADU
Dynamic range	58.7dB
Readout Noise	197.6e
Full Well	175.4ke
SNRmax	52.4dB
Sensitivity	121mV
Dark current	638e/s(20°C)
Gain range	1x-15x
Exposure time	15µs-60sec
Shutter	Global shutter
Binning	Software2x2, 3x3, 4x4
Data interface	USB3
Digital I/O	One optical-coupling isolated input, one optical-coupling isolated output, one non-isolated input and output
Data Format	8bit / 12bit
Cooling performance	10°C below ambient temperature
Optical filter	400-1800nm(default); 1030-1800nm(optional)
CRA	2.35 Deg
General specification
Power supply	Power with USB3.0
Power consumption	<2.11W
Temperature	Working temperature -20~60℃, storage temperature -40~85℃
Humidity	20%-80%, no condensation
Size	33mm×33mm×38mm
Weight	70g
Lens mount	C-mount
Software	ToupView/ SDK
Operating system	Win32/WinRT/Linux/macOS/Android
Certification	CE, FCC

Model Parameter	SWIR330KMB-UMV
Model Parameter	0.33M pixels 1/4” CMOS USB3 industrial camera
Camera
Sensor model	Sony IMX991-AABJ-C
Sensor Type	InGaAs
Spectral Range	400nm-1700nm
Pixel size	5.0 µm x 5.0 µm
Sensor size	1/4”
ADC	12 Bit / 8 Bit
Frame rate	8 Bit：428.1fps@640 x 512、807fps@320 x 256 12 Bit：227.7fps@640 x 512、429.3fps@320 x 256
Image Buffer	512MByte
Conversion Gain	43.0e/ADU
Dynamic range	59.6dB
Readout Noise	178.8e
Full Well	176.2ke
SNRmax	52.5dB
Sensitivity	121mV
Dark current	638e/s(20°C)
Gain range	1x-15x
Exposure time	15µs-60sec
Shutter	Global shutter
Binning	Software2x2, 3x3, 4x4
Data interface	USB3.0
Digital I/O	One optical-coupling isolated input, one optical-coupling isolated output, one non-isolated input and output
Data Format	8bit / 12bit
Optical filter	400-1800nm(default); 1030-1800nm(optional)
CRA	2.35 Deg
General specification
Power supply	Power with USB3.0
Power consumption	<2.11W
Temperature	Working temperature -20~60℃, storage temperature -40~85℃
Humidity	20%-80%, no condensation
Size	33mm×33mm×38mm
Weight	70g
Lens mount	C-mount
Software	ToupView/ SDK
Operating system	Win32/WinRT/Linux/macOS/Android
Certification	CE, FCC

Sensor Quantum Efficiency

IMX990/IMX991 absolute quantum efficiency

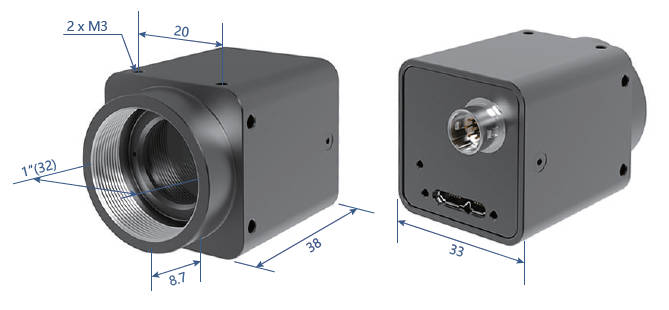

Camera Dimensions

External dimensions (mm) of cooled cameras with GigE interface in the SWIR series

Parameter	Specification
Size	333338mm
Mount	C mount

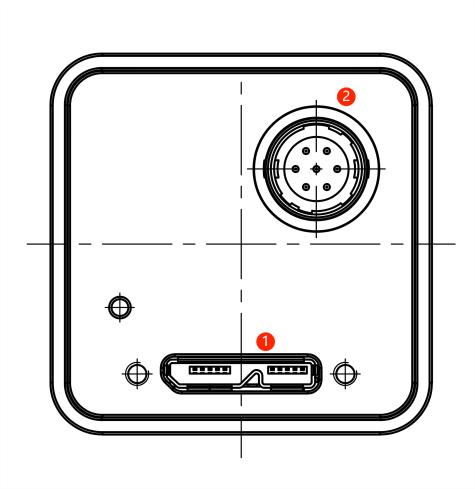

Item	Specification
1	USB3.0 port
2	External IO connection port

Packing List

Packing Information for the SWIR Series USB Uncooled Camera

Standard Packaging List
A	External box for B(not shown in this figure) Carton size: L:28.2cm W:25.2cm H:16.7cm
B	3-A safety equipment case: L:28cm W:23cm H:15.5cm (1pcs, 2.8Kg/ box)
C	SWIR 400-1700 series USB uncooled camera
D	High-speed USB3.0 A male to B male gold-plated connector cable/1.5m
E	One external trigger control cable
F	USB flash disk (with driver and application software in it)

SWIR
