X5CAM4K_MR Series HDMI/NETWORK/USB Multi-outputs C-mount CMOS Camera

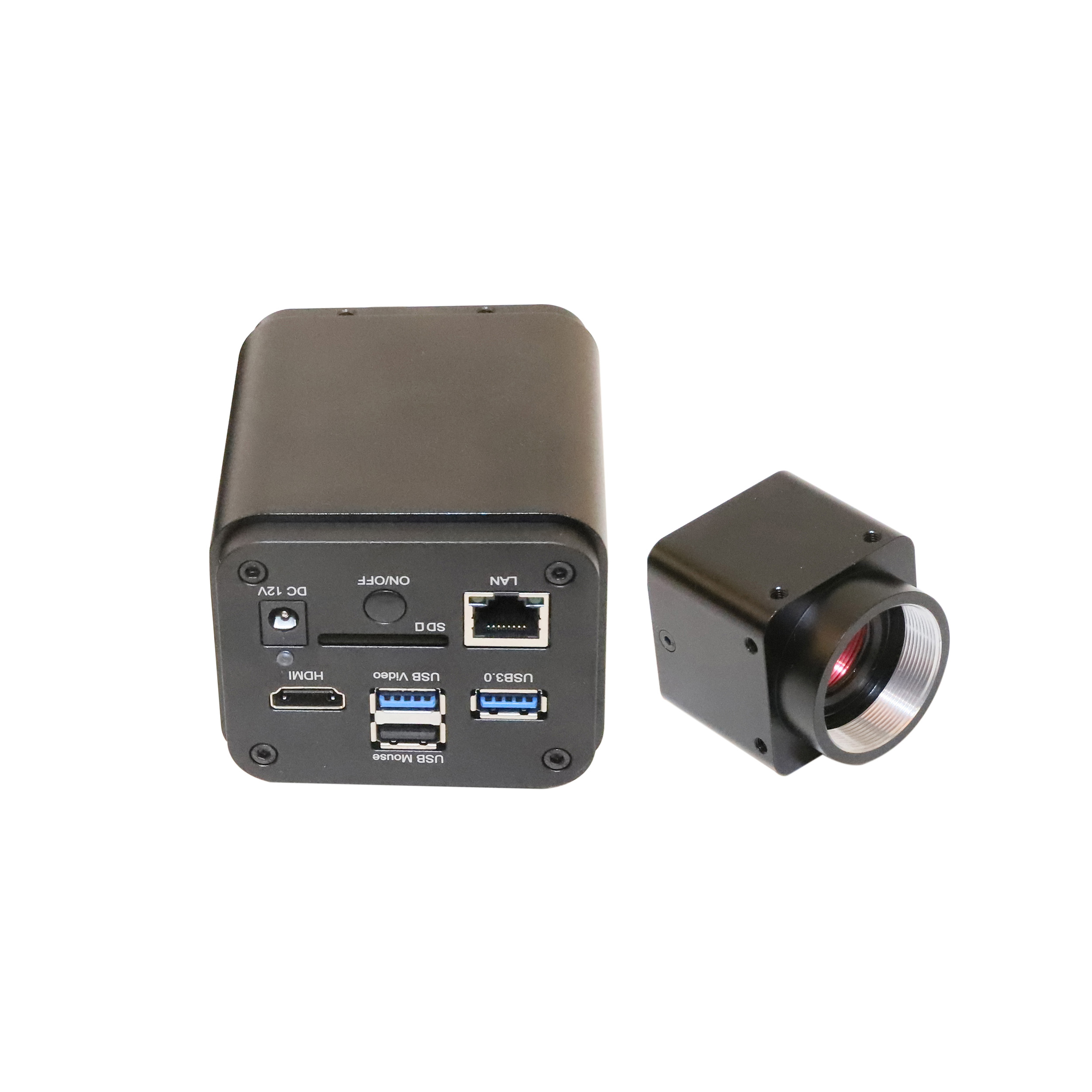

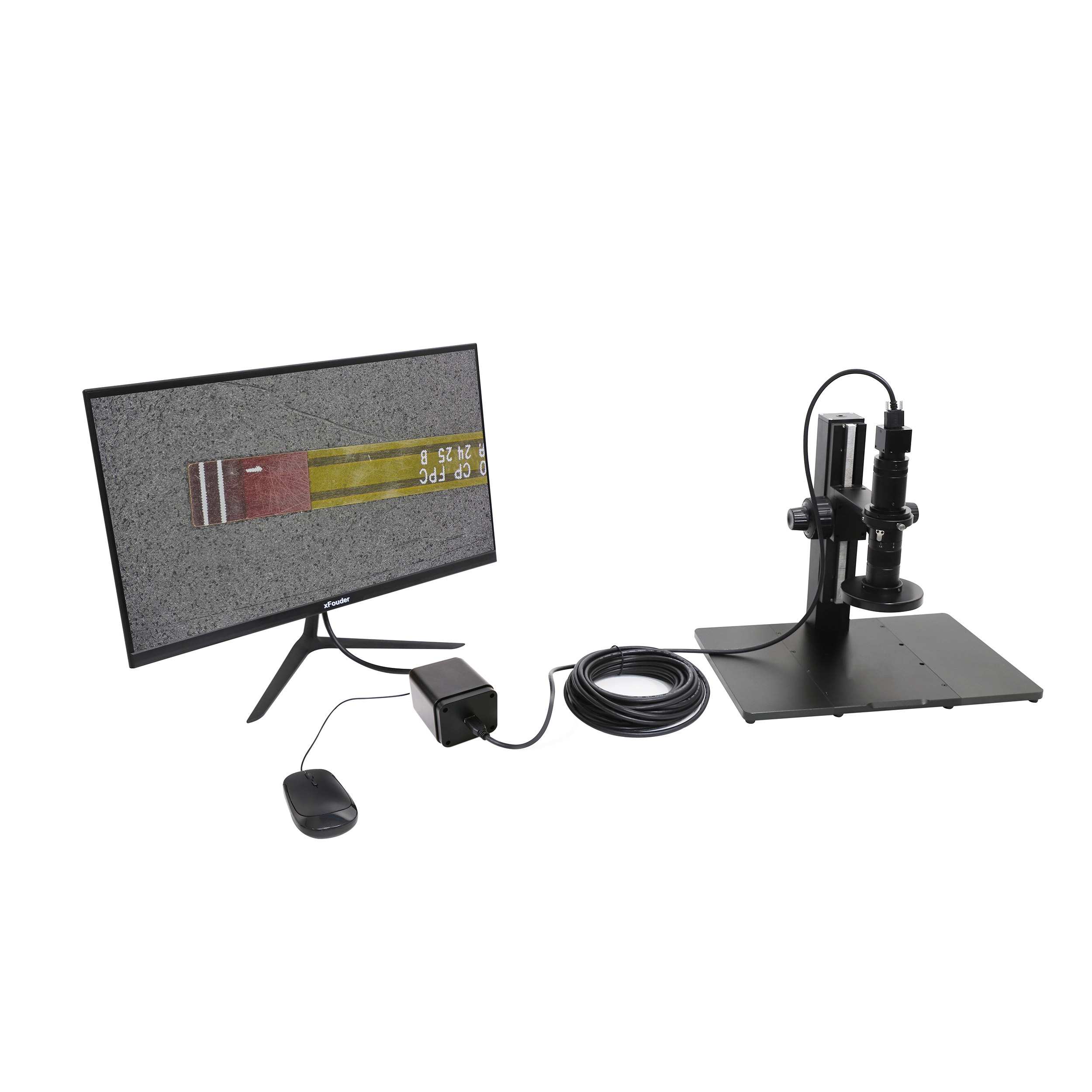

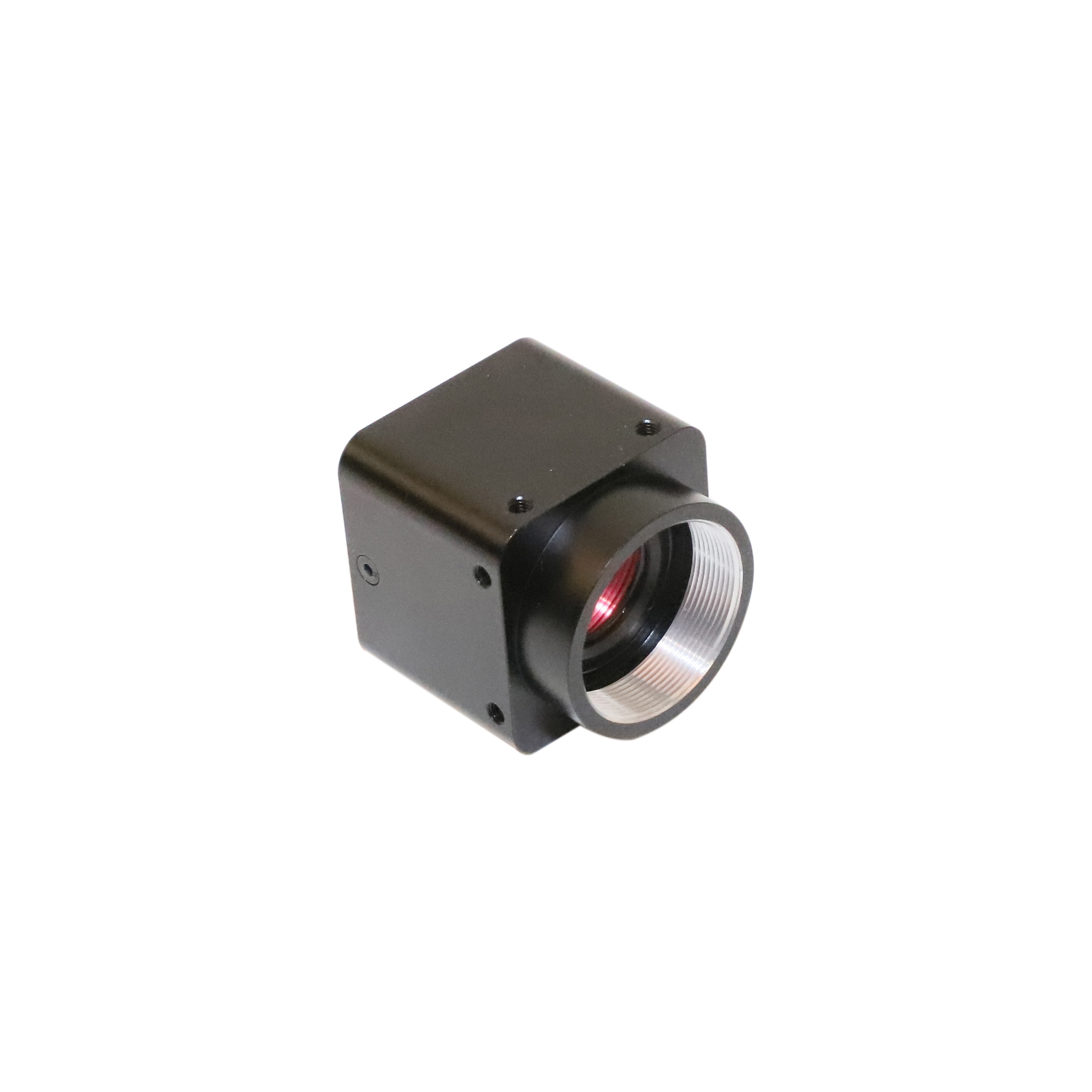

The X5CAM4K_MR is a separated long-distance transmission HDMI camera developed by Touptek, the master device and the image acquisition sub-device are connected by USB3.0 cable, the connection cable is up to 10 metres long, with USB3.0 A male to MicroB interface and screw lock. Separate design can be convenient for customers to integrate the small volume of capture sub-equipment into the host of the relevant industry, the master device external, easy to connect to the monitor or computer for operation and control.

Basic Features of the X5CAM4K_MR Series HDMI Cameras:

  • Sony STARVIS 2 back-illuminated CMOS sensor
  • 4K HDMI/ NETWORK/ USB multiple video synchronous outputs
  • 4K/1080P auto switching according to monitor resolution
  • 4K 60fps low delay HDMI output mode, with an average delay of 40ms
  • SD card/USB flash drive for captured image and video storage, support local preview and playback
  • Support the capture and display of RAW format images
  • Support Image Auto Upload to the server over the network.
  • Supports USB voice control module, enabling real-time control of the camera through voice commands for taking photos, recording videos, freezing, and other operations
  • New browsing function, providing rich file operation functions, image to image comparison, image to real-time video comparison, multi-image EDF function, multi-image Stitch function
  • Excellent ISP with local tone mapping and 3D denoising
  • Provide real-time video EDF function and real-time video WDR output function
  • Provide real-time Stitch function to obtain higher quality images through real-time processing
  • Provide two sets of default ISP parameters for biological microscope and stereo microscope
  • Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions
  • ToupView/ToupLite software for PC
  • iOS/Android applications for smart phones or tablets

Related Models

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

Sensor Output

(FPS/Resolution)

Binning

Exposure(ms)

X5CAM4K8MPA_MR

Sony IMX678(C)
1/1.8"(7.68x4.32)

2.0x2.0

3541mv with 1/30s
0.15mv with 1/30s

60@3840*2160

1x1

0.019~1000

X5CAM4K8MPB_MR

Sony IMX585(C)
1/1.2"(11.14x6.26)

2.9x2.9

5970mv with 1/30s
0.13mv with 1/30s

60@3840*2160

1x1

0.048~1000

The X5CAM4K_MR series cameras have different interface output parameters as shown in the table below.

Camera Model

Video Saving(FPS/Resolution)

HDMI2.0(FPS/Resolution)

USB3.0(FPS/Resolution)

NETWORK(FPS/Resolution)

X5CAM4K8MPA_MR

60@3840*2160
60@1920*1080
60@1280*720

60@3840*2160
60@1920*1080

30@3840*2160
45@2688*1512
60@1920*1080

30@3840*2160
60@1920*1080
60@1280*720

X5CAM4K8MPB_MR

60@3840*2160
60@1920*1080
60@1280*720

60@3840*2160
60@1920*1080

30@3840*2160
45@2688*1512
60@1920*1080

30@3840*2160
60@1920*1080
60@1280*720

详细参数

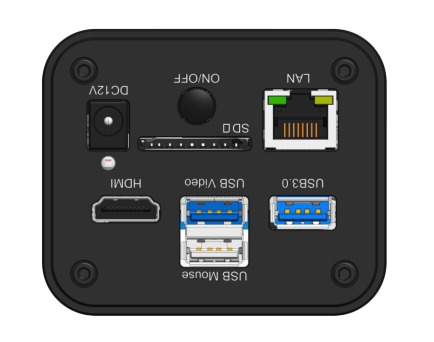

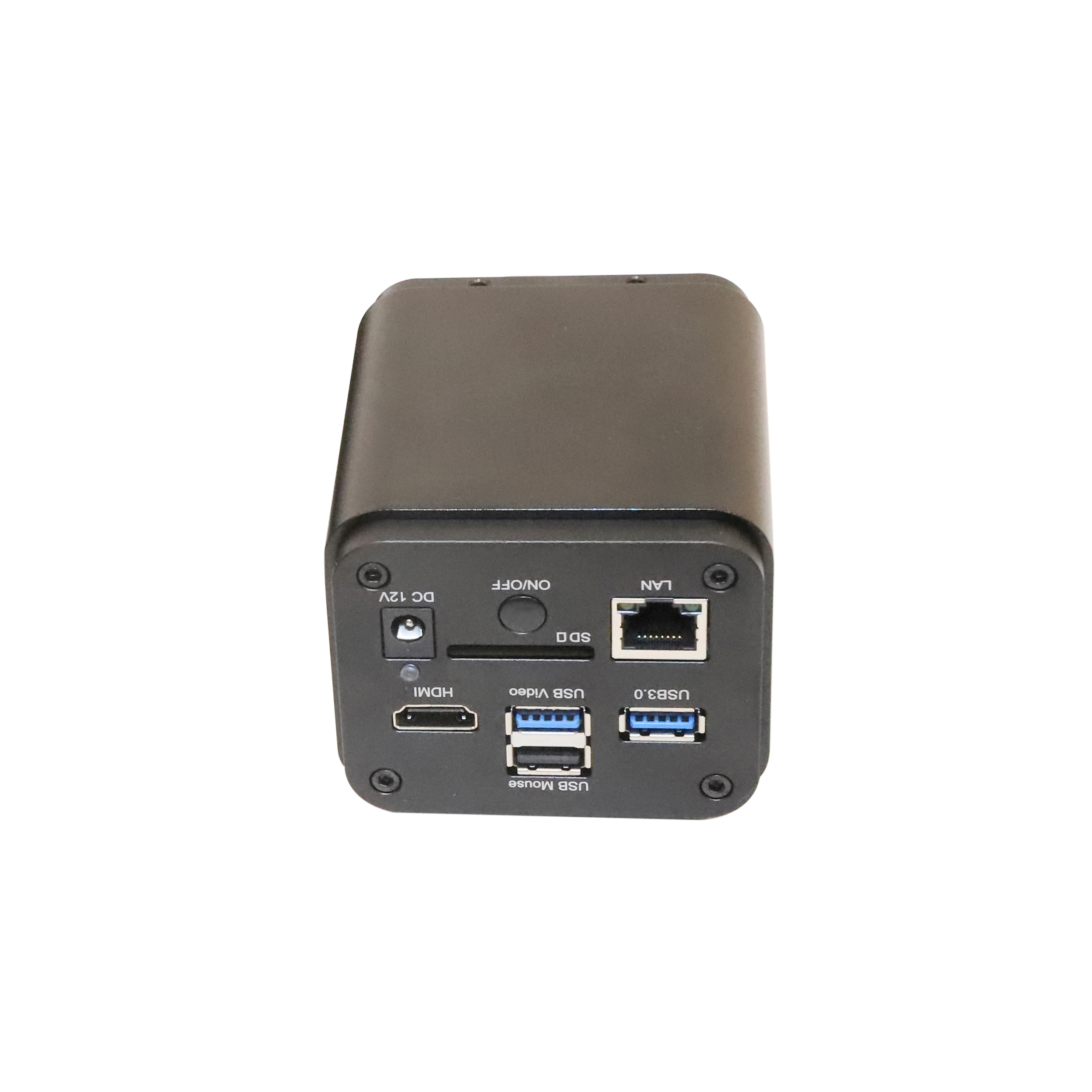

Schematic diagram of the HDMI camera interface panel for the X5CAM4K_MR series
Schematic diagram of the HDMI camera interface panel for the X5CAM4K_MR series

Interface or Button

Function Description

USB Mouse

Connect USB mouse for easy operation with embedded XCamView software
Connect USB voice control for enable real-time control of camera snap, recording, freezing, and other operations

USB3.0

Connect USB flash drive to save pictures and videos
Connect 5G WiFi module to transfer video wirelessly in real time
Connect USB microphone to record audio and video
Connect USB voice control for enable real-time control of camera snap, recording, freezing, and other operations

USB Video

Connect PC or other host device to realize video image transmission

HDMI

Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors

LAN

LAN port to connect router and switch to transfer video

SD

SD card slot, comply with SDIO3.0 standard and SD card could be inserted for video and images saving

ON/OFF

Power switch

LED

LED status indicator

DC12V

Power adapter connection (12V/1A)

Video Output Interface

Function Description

HDMI Interface

Comply with HDMI2.0 standard;60fps@4K or 60fps@1080P

LAN Interface

Support real time resolution switching(4K/1080P/720P)
H264 encoded video
DHCP configuration or manual configuration
Unicast/multicast configuration

WiFi Interface

Connecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode

USB Video Interface

Connecting USB Video port of PC for video transfer
H264/MJPEG format video

Other Function

Function Description

Video Saving

Video format：8M(3840*2160) H264 encoded MP4 file
Video saving frame rate: 60fps in low delay mode

30fps in WDR mode

Image Capture

8M (3840*2160) JPEG/TIFF/RAW image in SD card or USB flash drive
(Default SD card priority, priority can be modified in settings)

Measurement Saving

Measurement information saved in different layer with image content
Measurement information is saved together with image content in burn in mode

ISP

Exposure(Automatic / Manual Exposure) / Gain， White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Hue Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function

Image Operation

Zoom In/Zoom Out (Up to 10X), Mirror/Flip, Freeze, EDF, Stitch, Grids, Overlay, PIP, Browser (including Picture Browsing, Video Playback, Video Compare, Picture Compare, EDF, Stitch, Image Processing), Measurement Function

Embedded RTC(Optional)

To support accurate time on board

Restore Factory Settings

Restore camera parameters to its factory status

Multiple Language Support

English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Spanish / Japanese / Italian / Russian / Dutch / Portuguese

Applications

X5CAM4K_MR Camera
Human skin and hair follicle sections
X5CAM4K_MR Camera
Human skin and hair follicle sections
X5CAM4K_MR Camera
Paramecium WM (Note: “WM” seems to be an abbreviation or code, which is not translated as its meaning is unclear without additional context.)
X5CAM4K_MR Camera
Gastric sections/gastric tissue

External Dimensions

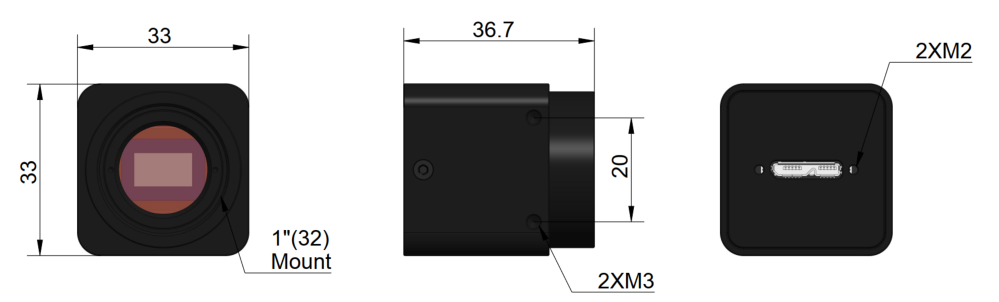

Schematic diagram of the image acquisition sub-device dimensions for the X5CAM4K_MR series cameras

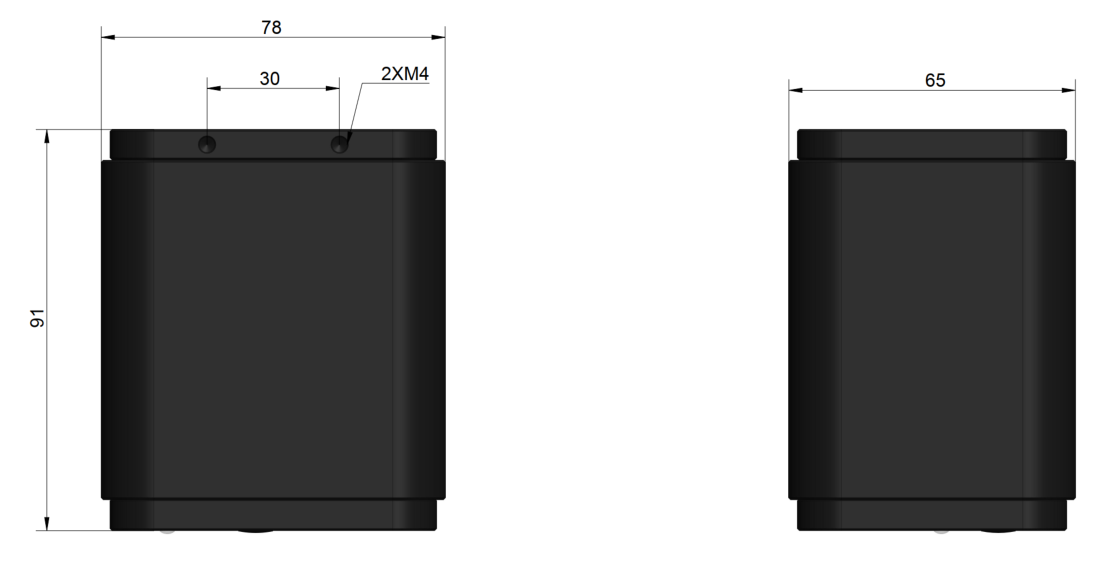

Schematic diagram of the main device dimensions for the X5CAM4K_MR series cameras
Dimension of X5CAM4K_MR Series Camera(Image Capture Sub-device and Master Device)

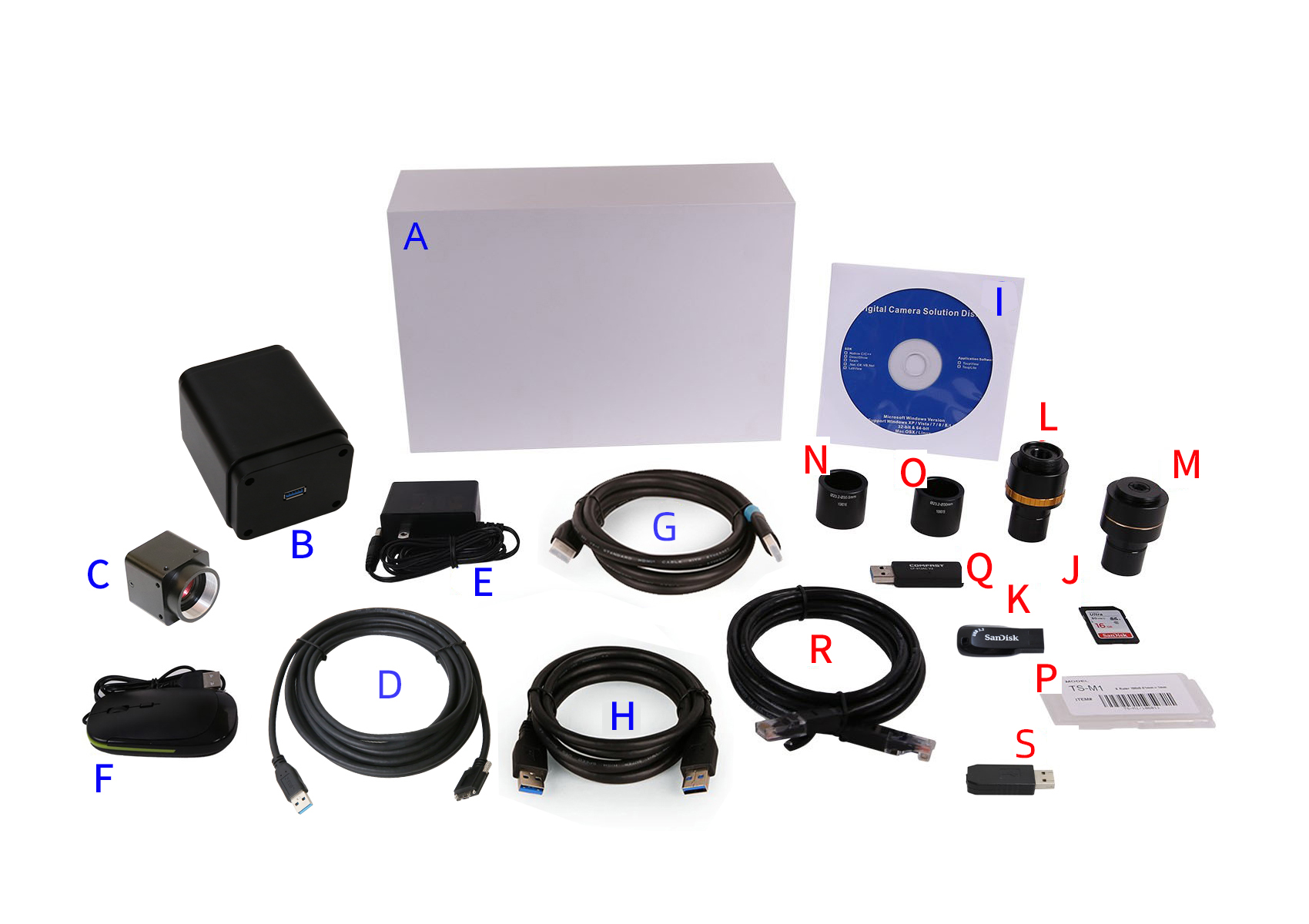

Packing List

X5CAM4K_MR Camera
X5CAM4K_MR Series Camera Packing Information

Standard Packing List

A

Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 2Kg/ box)

B

X5CAM4K_MR Camera master device

C

X5CAM4K_MR Camera image capture sub-device

D

USB3.0 A Male to MicroB Cable (10m)

E

Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A
American standard: Model: POWER-U-12V1A(MSA-C1000IC12.0-12W-US): UL/CE/FCC
European standard: Model: POWER-E-12V1A(MSA-C10001C12.0-12W-DE): UL/CE/FCC
EMI standard: FCC Part 15 Subpart B
EMS standard: EN61000-4-2,3,4,5,6

F

USB Mouse

G

HDMI Cable

H

USB3.0 A male to A male gold-plated connectors cable /1.5m

I

CD (Driver & utilities software, Ø12cm)

Optional Accessory

J

SD Card(16G or above; Speed: class 10)

K

USB flash drive

L

Adjustable lens adapter

C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

M

Fixed lens adapter

C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

Note: For L and M optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

N

108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

O

108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

P

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X, Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

Q

USB WiFi adapter

R

Ethernet cable

S

USB Voice Control Module
