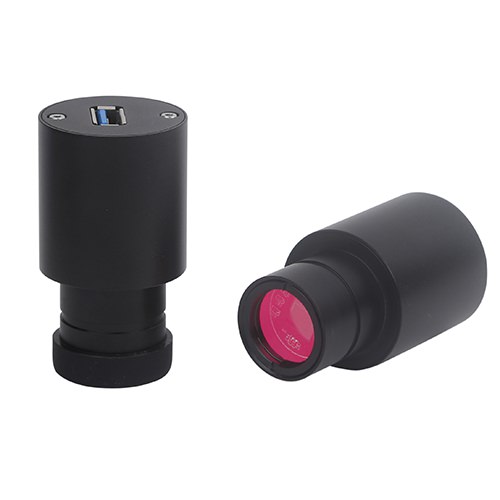

S3CMOS Series USB3.0 Eyepiece Camera

S3CMOS

ToupTek S3CMOS is an economic version with simple and compact structure USB3.0 CMOS eyepiece camera. So here, the S means simple and compact. USB3.0 is used as the data transfer interface.

Microscope eyepiece Camera with 23.2 diameter and compact size;

The S3CMOS eyepiece Camera comes with high-speed USB3.0 interface and high frame rate video display keep the screen smooth without interruption;

Also the S3CMOS comes with advanced video & image processing application ToupView;

The S3CMOS can be widely used to transfer the mono or binocular student microscops to digital microscope.

With 23.2 to 30mm or 23.2 to 30.75 convert ring, the S3CMOS Camera can also change the stereo microscope to digital stereo microscope.

  • Microscope eyepiece Camera with 23.2 diameter and compact size;
  • Easy to extend to C or CS- Mount Camera with high quality lens(optional);
  • High-quality Camera with Aptina CMOS sensor;
  • Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted;
  • High-speed USB3.0 interface and high frame rate video display keep the screen smooth without interruption;
  • With advanced video & image processing application ToupView;
  • Custom programmable with SDK provided;

Related models

Order Code

Sensor & Size

Pixel(μm)

G Responsivity

Dynamic range

SNRmax

FPS/Resolution

Binning

Exposure

S3CMOS05100KPA

5.1M/IMX335(C)

1/2.8“ (5.18x3.89)

2.0x2.0

505mV

70dB

43dB

20@2592x1944

20@1280x960

20@640x480

1x1

1x1

1x1

0.1-2000 ms

S3CMOS05000KPA

5.0M/MT9P001(C)

1/2.5"(5.70x4.28)

2.2x2.2

0.53 V/lux-sec

66.5dB

40.5dB

15@2560x1920

15@2048x1536

30@1920x1080

1x1

1x1

2x2

Auto

S3CMOS05000KPC

5.0M/SC5033(C) 1/2.7"(5.18x3.89)

2.0x2.0

2 V/lux-sec

64dB

35dB

15@2592x1944

20@2048x1536

20@1600x1200

30@800x600

1x1

1x1

1x1

2x2

Auto

specification

Other Specification

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

Auto White Balance

Data Format

MJPEG / YUV

Color Technique

N/A

Capture/Control SDK

Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)

Recording System

Still Picture and Movie

Cooling System*

Natural

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB3.0 Port

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:2GB or More

USB Port:USB3.0 High-speed Port

Display:17” or Larger

CD-ROM

Application

The S3CMOS series can be widely used to transfer the mono or binocular student microscopes to digital microscope.

With 23.2 to 30mm or 23.2 to 30.75 convert ring, the S3CMOS Camera can also change the stereo microscope to digital stereo microscope.

Instance

S3CMOS Application Instance
Frog Late Gastrula. Sec.
S3CMOS Application Instance
Dogfish Placoid Scales. W. M.
S3CMOS Application Instance
Ctenoid. W.M
S3CMOS Application Instance
Cycloid. W.M

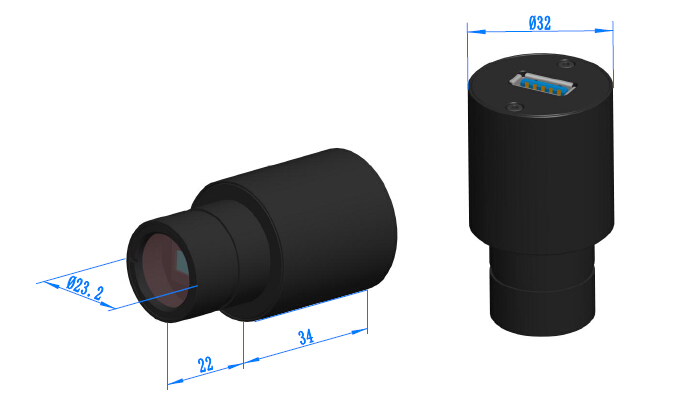

S3CMOS Camera Dimensions

S3CMOS Camera Dimensions

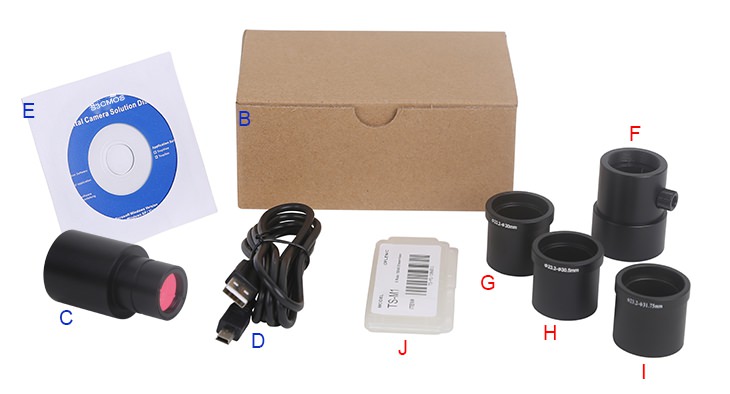

Packing List

S3CMOS
Packing Information of S3CMOS Series

Standard Camera Packing List

A

Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo

B

Gift box L:15cm W:15cm H:10cm (0.25~0.35Kg/ box)

C

One S3CMOS series camera

D

High-Speed USB3.0 USB315-ATA | USB 3.0 A Male to A Male Cable,1.5m

E

CD (Driver & utilities software, Ø8cm)

Optional Accessory

F

C-Mount adapter housing:108027(HS502)

G

108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube

H

108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube

I

108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube

J

Calibration kit

106011/TS-M1(X=0.01mm/100Div.)οΌ›

106012/TS-M2(X,Y=0.01mm/100Div.);

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
