C2CMOS Series C-mount USB2.0 CMOS Camera

C2CMOS

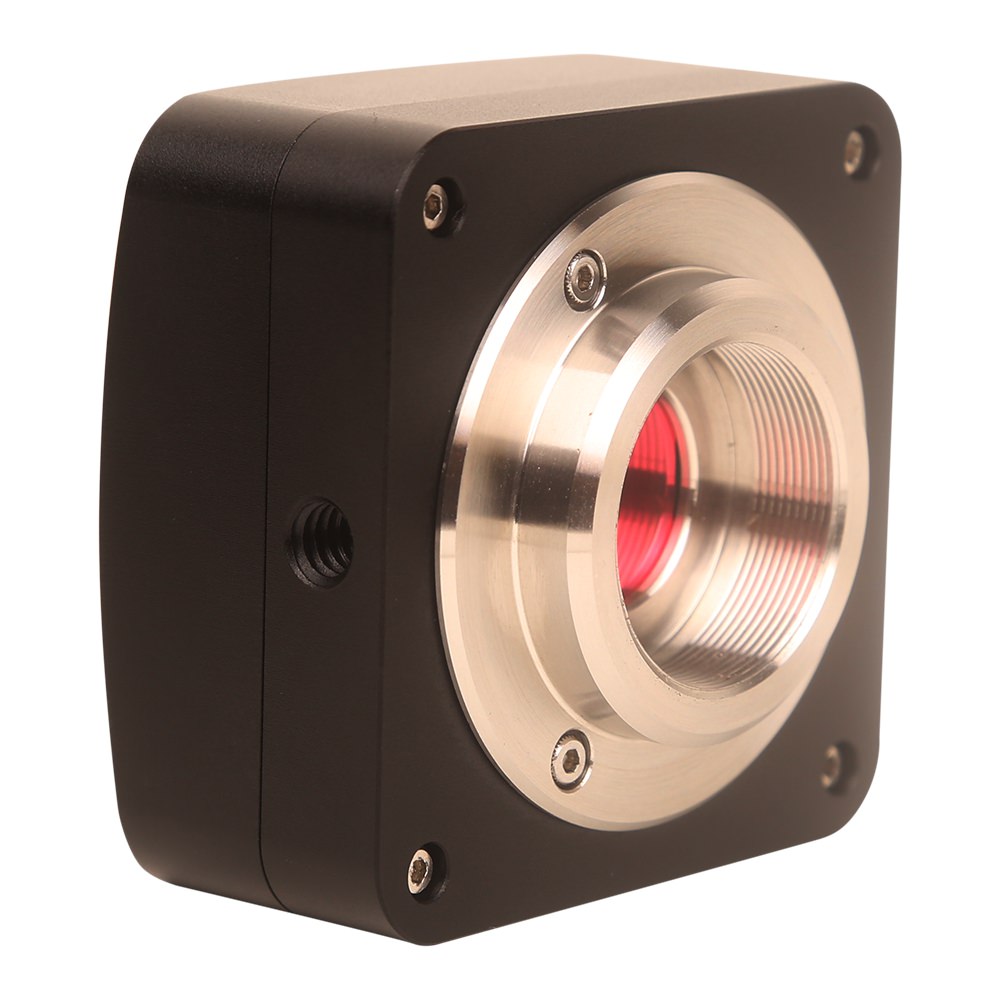

C2CMOS: ToupTek C2CMOS Microscope Camera is compact and high performance CMOS Camera and it adopts Sony or OnSemi CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.

C2CMOS Microscope Camera hardware resolutions range from 2.1M to 12M and comes with the Integrated zinc aluminum alloy compact housing.

High performance MJPEG compression algorithm, combined with the unique decoding method of ToupView and image restoration algorithm ensure highest frame rate of USB2.0 Camera in the industry. The FPS for 5MP and 8MP can be up to 30FPS; the FPS for 12MP can be up to 20FPS;

Built in Ultra-fine hardware ISP engine ensures high color restoration;

  • Support automatic/manual exposure switching, accurate exposure time control, and real-time adjustment of exposure target area;
  • Support automatic/static/manual/ROI white balance;
  • Support color adjustment/color mode selection/image flipping;
  • Support histogram adjust/flat field correction/dark field correction/video ROI;

C2CMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);

The C2CMOS can be widely used in brightfield light environment and microscope image capture and analysis with moderate frame rate.

  • Standard C-Mount Camera with Sony or OnSemi CMOS sensor;
  • With hardware resolution among 2.10MP to 12MP;
  • USB2.0 interface ensuring high speed data transmission;
  • Integrated with large capacity memory chip ensures data synchronous transmission, low latency, high frame rate and stability;
  • Compatible with Microsoft USB Video Class protocol and support the third-party software development;
  • Built in Ultra-fine hardware ISP engine ensures high color restoration;
  • High performance MJPEG compression algorithm, ensure highest frame rate of USB2.0 Camera in the industry;
  • The FPS for 5MP and 8MP can be up to 30FPS; the FPS for 12MP can be up to 15FPS;
  • Comply with CE and FCC agreements;
  • CNC aluminum alloy housing;
  • With advanced video & image processing application ToupView;
  • Windows/Linux/macOS/Android multiple platform SDK;
  • Very competitive pricing.

Related models

Order Code

Sensor & Size(mm)

Pixel(μm)

G Responsivity

Dynamic range

SNRmax

FPS/Resolution

Binning

Exposure

C2CMOS12000KPA

12M/IMX577(C)

1/2.3“ (5.95x4.71)

1.55x1.55

250LSB

70dB

43dB

20@3840x3040

20@1920x1520

20@960x760

1x1

1x1

1x1

0.1-2000 ms

C2CMOS08300KPA

8.3M/IMX274(C)

1/2.5“ (6.22x3.50)

1.62x1.62

236mV

70dB

43dB

30@3840x2160

30@1920x1080

30@1280x720

30@960x540

1x1

1x1

1x1

0.1-2000 ms

C2CMOS05100KPA

5.1M/AR0521(C)

1/2.5“ (5.70x4.28)

2.2x2.2

18.8ke-/lus

73dB

40dB

30@2592x1944

30@1280x960

30@640x480

1x1

1x1

1x1

0.1-1000 ms

C2CMOS05100KPB

5.1M/IMX335(C)

1/2.8“ (5.18x3.89)

2.0x2.0

505mV

70dB

43dB

26@2592x1944

26@1280x960

26@640x480

1x1

1x1

1x1

0.1-2000 ms

C2CMOS03100KPA

3.1M/Aptina(C)

1/2.5“ (5.73x4.3)

2.8x2.8

18.8ke-/lus

73dB

40dB

30@2048x1536

30@1024x768

1x1

1x1

0.1-1000 ms

C2CMOS02100KPA

2.1M/IMX307(C)

1/2.8“ (5.73x4.3)

2.9x2.9

1300mV

73dB

43dB

38@1920x1080

38@1024x768

1x1

1x1

0.1-2000 ms

specification

Other Specification

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

Auto/static/manual/ROI White Balance/Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-fine hardware ISP engine /NA for Monochromatic Sensor

Capture/Control SDK

Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)

Data Interface

USB2.0

Data Format

MJPEG

Recording System

Still Picture and Movie

Cooling System*

Natural

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:2GB or More

USB Port:USB2.0 High-speed Port

Display:17” or Larger

CD-ROM

Application

The C2CMOS can be widely used in brightfield light environment and microscope image capture and analysis with moderate frame rate.

Instance

C2CMOS Application Instance

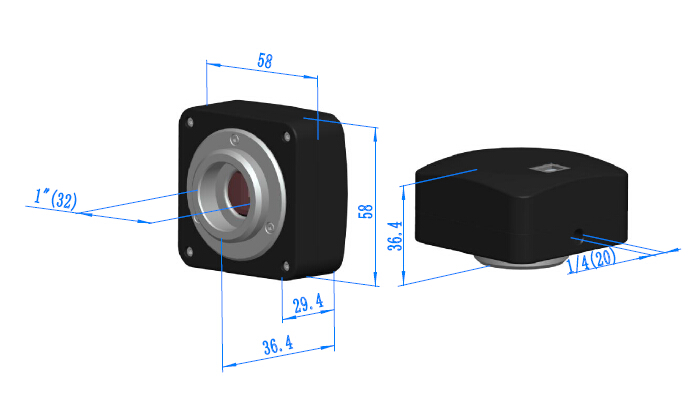

C2CMOS Camera Dimensions

C2CMOS Camera Dimensions

Packing List

C2CMOS

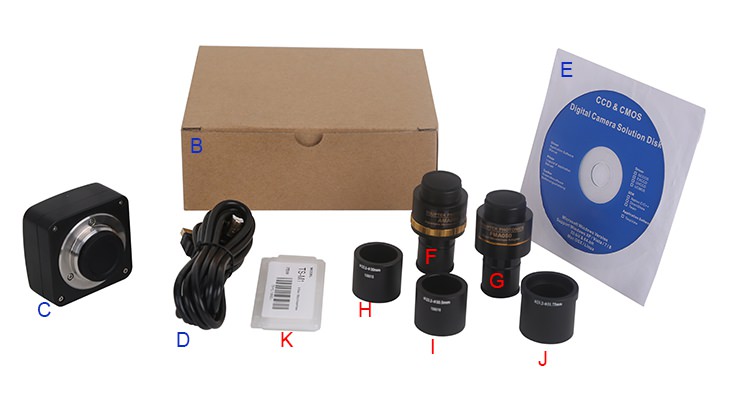

Packing Information of C2CMOS Series

Standard Camera Packing List

A

Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo

B

Gift box L:15cm W:15cm H:10cm (0.5~0.55Kg/ box)

C

One C2CMOS series camera

D

High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m

E

CD (Driver & utilities software, Ø12cm)

Optional Accessory

F

Adjustable lens adapter

C-mount to Dia.23.2mm eyepiece tube

(Please choose 1 of them for your microscope)

108001/AMA037

108002/AMA050

108003/AMA075

C-mount to Dia.31.75mm eyepiece tube

(Please choose 1 of them for your telescope)

108008/ATA037

108009/ATA050

108010/ATA075

G

Fixed lens adapter

C-mount to Dia.23.2mm eyepiece tube

(Please choose 1 of them for your microscope)

108005/FMA037

108006/FMA050

108007/FMA075

C-mount to Dia.31.75mm eyepiece tube

(Please choose 1 of them for your telescope)

108011/FTA037

108012/FTA050

108013/FTA075

Note: For F and G optional items, please specify your Camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

H

108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube

J

108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube

K

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);

106012/TS-M2(X,Y=0.01mm/100Div.);

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
