XFCAM1080PHD Auto Focus HDMI Camera

XFCAM1080PHD Camera

XFCAM1080PHD is a multiple interfaces (HDMI+WiFi+SD card, so X here means multiple interfaces) CMOS Camera with autofocus function (F means autofocus) and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WiFi are used as the data transfer interface to HDMI display or computer.

puter. For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.

In HDMI output, the Camera embedded Auto/Manual focus function can obtain the clear image at ease. No hand rotation of the microscope Coarse/Fine knob is needed.

For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the camera, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as ToupTek's other USB series camera.

  • All in 1( HDMI+WiFi) C-mount Camera with Sony high sensitivity CMOS sensor;
  • Auto/Manual focus with the movement of the sensor;
  • ForHDMI application, with built-in multiple-language XCamView software. The camera characteristic can be controlled by XCamView through the USB mouse. The other basic processing and control can also be realized by the XCamView;
  • 1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application;
  • For HDMI application, 0M resolution image(1920*1080 XFCAM1080PHD)can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved;
  • With the USB WiFi adapter, the XFCAM1080PHDcan be used as WiFi camera, the ToupView/ToupLite advanced image processing software is used to display the video and capture image. support plug and play application;
  • Ultra-Fine Color Engine with perfect color reproduction capability(WiFi);
  • With advanced video & image processing applicationToupView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
  • XFCAM1080PHDcan meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.

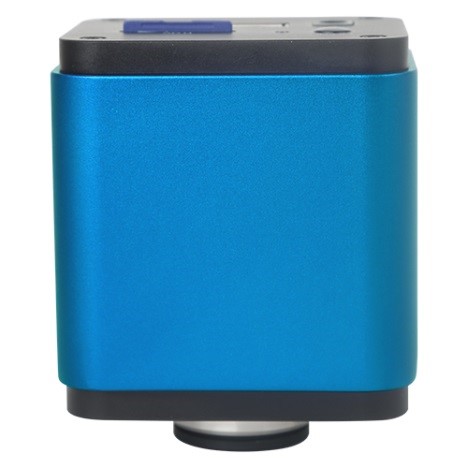

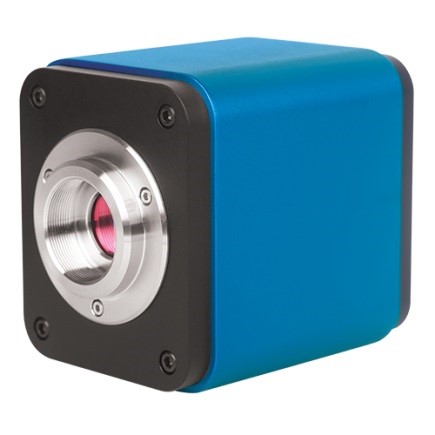

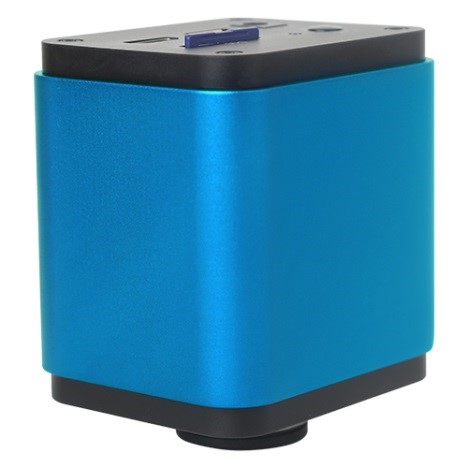

Different Views of XFCAM1080PHD
Different Views of XFCAM1080PHD
Different Views of XFCAM1080PHD

Related models

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity
Dark Signal

FPS/Resolution

Binning

Exposure

XFCAM1080PHD

1080P/2M/Sony IMX185(C)
1/1.9"(7.20x4.05)

3.75x3.75

1120mv with 1/30s
0.15mv with 1/30s

60/1920*1080
(HDMI)
25/1920x1080
(WiFi)

1x1

0.06ms~918ms

Specification

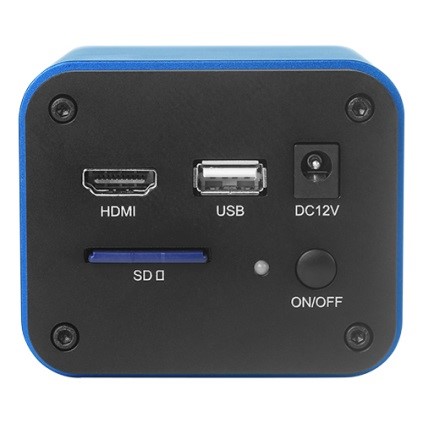

XFCAM1080PHD Back Panel
XFCAM1080PHD Back Panel

Interface & Button Functions

USB

USB Mouse/USB WiFi Adapter

HDMI

HDMI Output

DC12V

12V/1A Power in

SD

SD Card Slot

ON/OFF

Power On/off Switch

LED

Power Indicator

Other Specification for HDMI Output

UI Operation

With USB Mouse to operate on the embedded XCamView

Image Capture

JPEG Format with 2M Resolution in SD Card (XFCAM1080PHD)

Video Record

ASF Format 1080P 30fps in SD Card(8G)

Camera Control Panel

Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control

Toolbar

Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function, Muti-language and XCamView Version Information

Other Specification for WiFi Output

UI Operation

ToupView or ToupLite on Windows/Linux/OSX/Android Platform

WiFi Performance

802.11n 150Mbps; RF Power 20dBm(Maximum)

Maximum Connected Devices

3~6(According to the Environment and Connection Distance)

White Balance

Auto White Balance

Color Technique

Ultra-Fine TM  Color Engine (WiFi)

Capture/Control API

Standard SDK for Windows/Linux/Mac(WiFi)

Recording System

Still Picture or Movie (WiFi)

Software Environment (for USB2.0 Connection)

Operating System

Microsoft®  Windows®  XP / Vista / 7 / 8 / 8.1/10(32 & 64 bit)
OSx(Mac OS X)
Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:4GB or More

USB Port:USB2.0 High-speed Port(As Power Only, not as the USB Data Transfer)

Display:19” or Larger

CD-ROM

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 12V/1A Adapter

Instance

XFCAM1080PHD Application Instance
Research on Plant Roots and Stems
XFCAM1080PHD Application Instance
Research on Plant Roots and Stems
XFCAM1080PHD Application Instance
Medical pathological observation

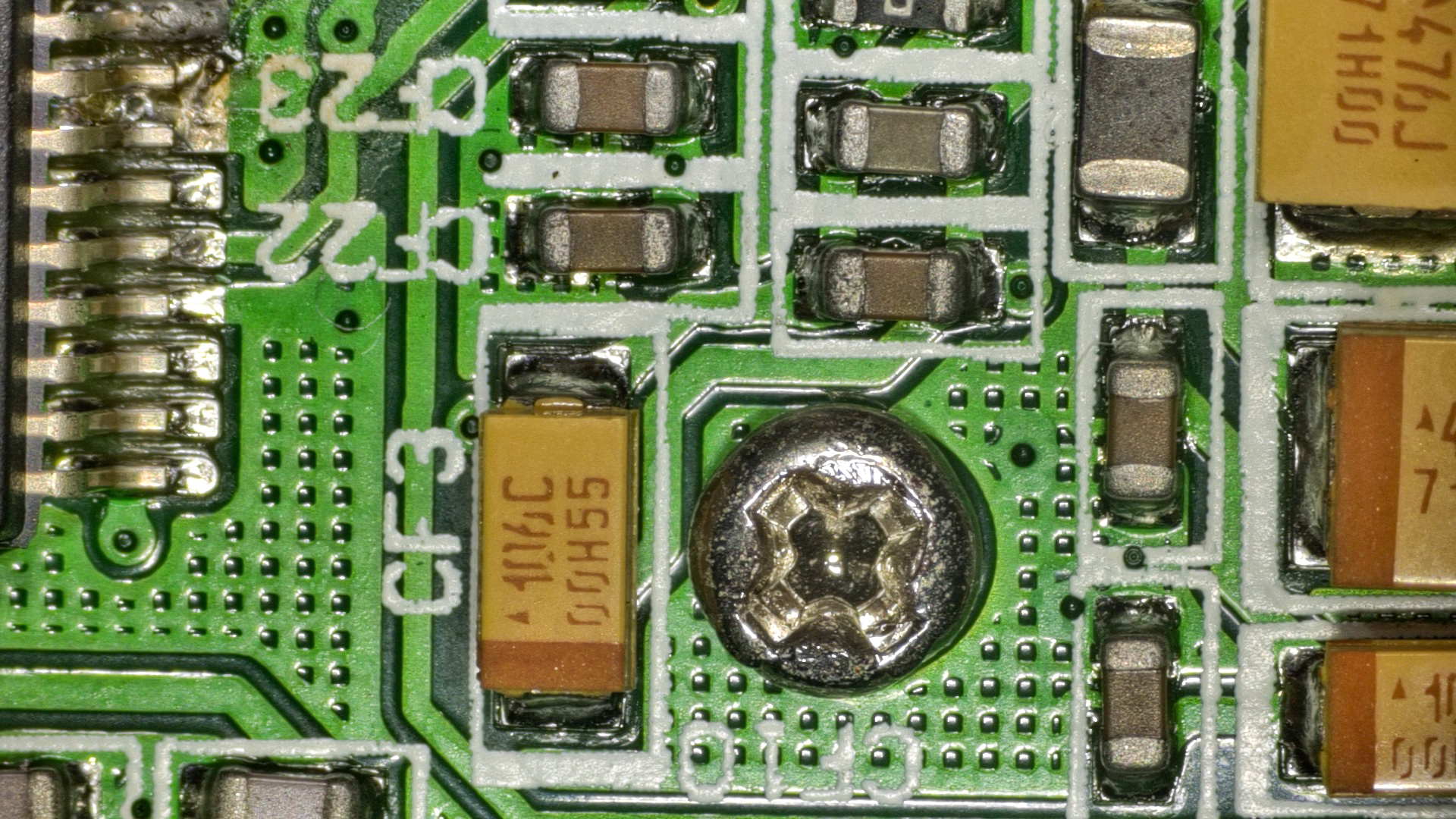

XFCAM1080PHD Application Instance
Industrial quality inspection

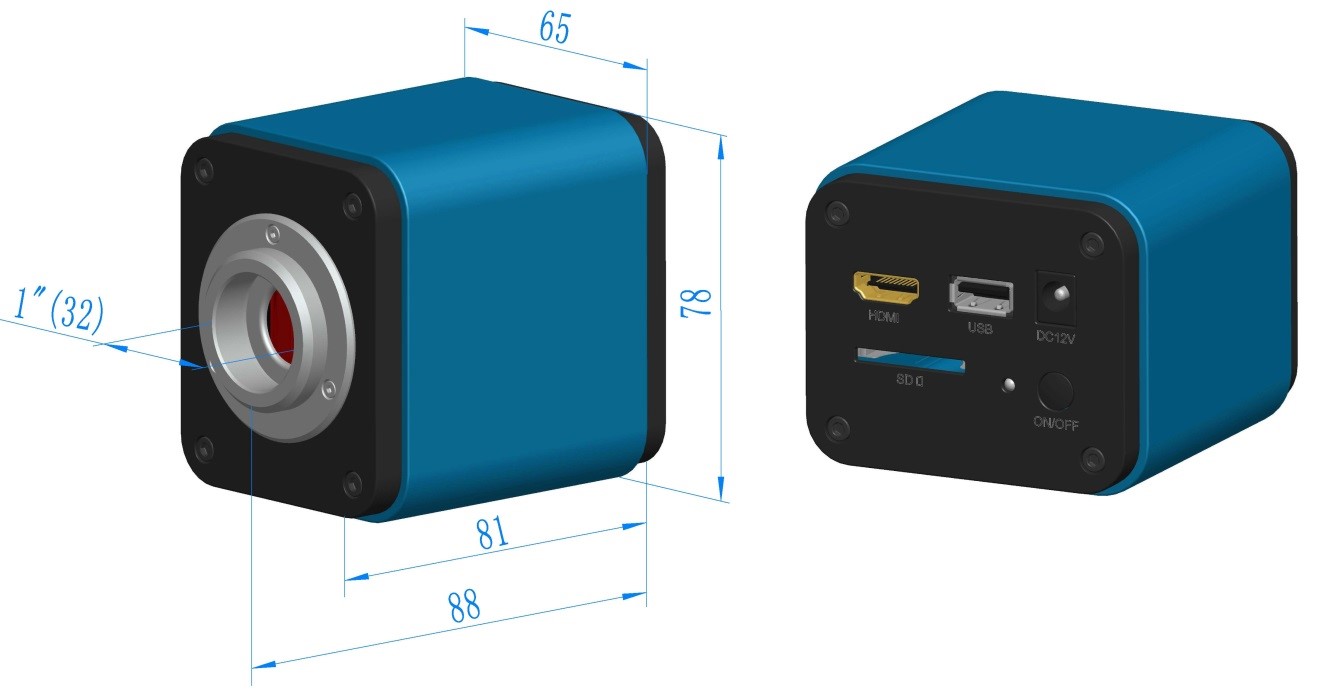

Dimension of XFCAM1080PHD

Dimension of XFCAM1080PHD
Dimension of XFCAM1080PHD

Packing List

XFCAM1080PHD Camera

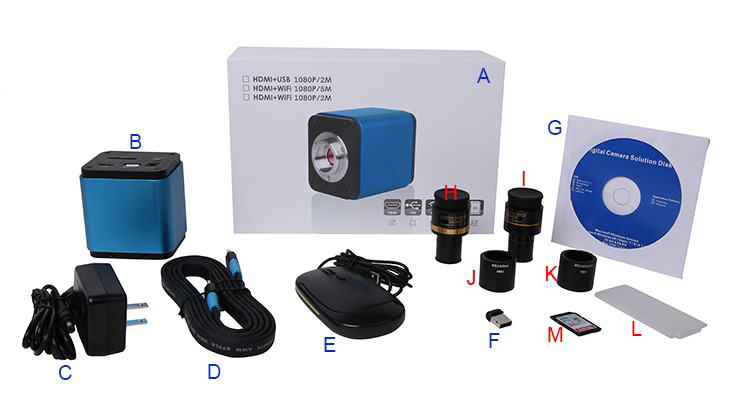

Packing Information of XFCAM1080PHD

Standard Packing List

A

Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.43Kg/ box)

B

XFCAM1080PHD

C

Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A

American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC

EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard

European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS

EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard

D

HDMI Cable

E

USB Mouse

F

Wireless network adapter with USB interface

G

CD (Driver & utilities software, Ø12cm)

Optional Accessory

H

Adjustable lens adapter

C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

I

Fixed lens Adapter

C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For H and I optional items, please specify your Camera type(C-mount, microscope Camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

J

108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

K

108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

L

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

M

SD Card(4G or 8G)
