23.2mm Eyepiece to C-mount Adjustable Microscope Eyepiece Adapter
Article Code
Model
Description
Bar Code
108001
AMA037
1. Available Size for 18 mm Field 18X0.37mm
2. Fit to 1/4”~1/3” Size Sensor
3. 0.37X Magnification
4. Manually Focusable
5. Parfocal with the Eyepiece
6. Dia.23.2mm Eyepiece Tube to C-Mount
108002
AMA050
1. Available Size for 18 mm Field 18X0.50mm
2. Fit to 1/2”~2/3” Size Sensor
3. 0.50X Magnification
4. Manually Focusable
5. Parfocal with the Eyepiece
6. Dia.23.2mm Eyepiece Tube to C-Mount
108003
AMA075
1. Available Size for 18 mm Field 18X0.75mm
2. Fit to 1/1.8”~1” Size Sensor
3. 0.75X Magnification
4. Manually Focusable
5. Parfocal with the Eyepiece
6. Dia.23.2mm Eyepiece Tube to C-Mount
108004

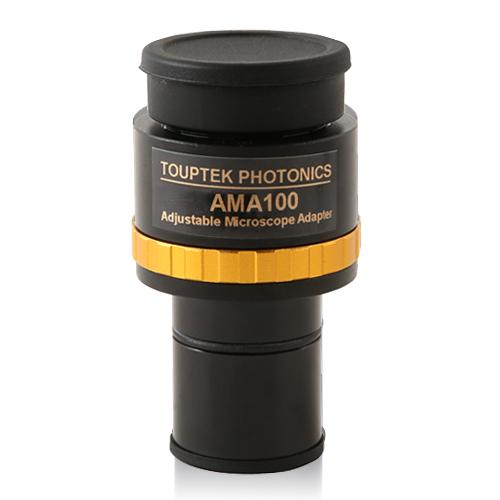

AMA100
1. Available Size for 18 mm Field 18X1.00mm
2. Fit to 1”~1.1” Size Sensor
3. 1X Magnification
4. Manually Focusable
5. Parfocal with the Eyepiece
6. Dia.23.2mm Eyepiece Tube to C-Mount
Other
*To cover the field, the sensor size should be smaller than the available size. ToupTek’s
experts will help you to select the correct Adapter for your ordered microscope camera. What
you need to do is to select the right Camera model.
